Toto MW9743346CEFG#01 Guinevere Washlet+ S2 One-Piece Toilet 1.28 GPF

Product Description

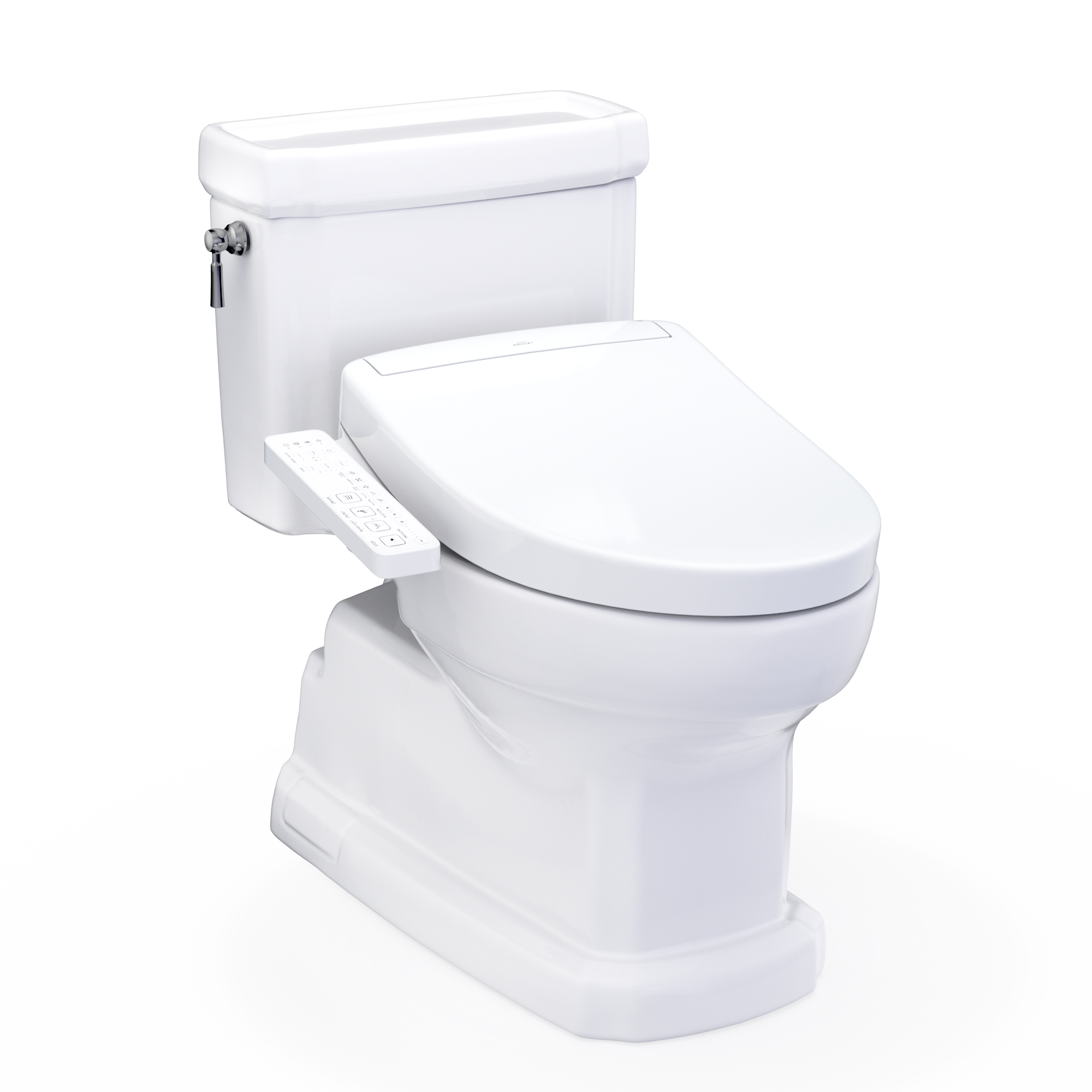

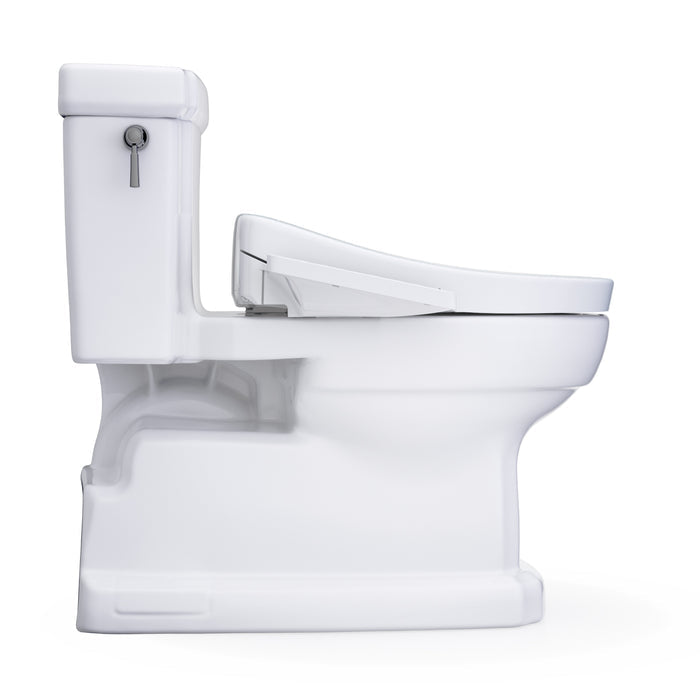

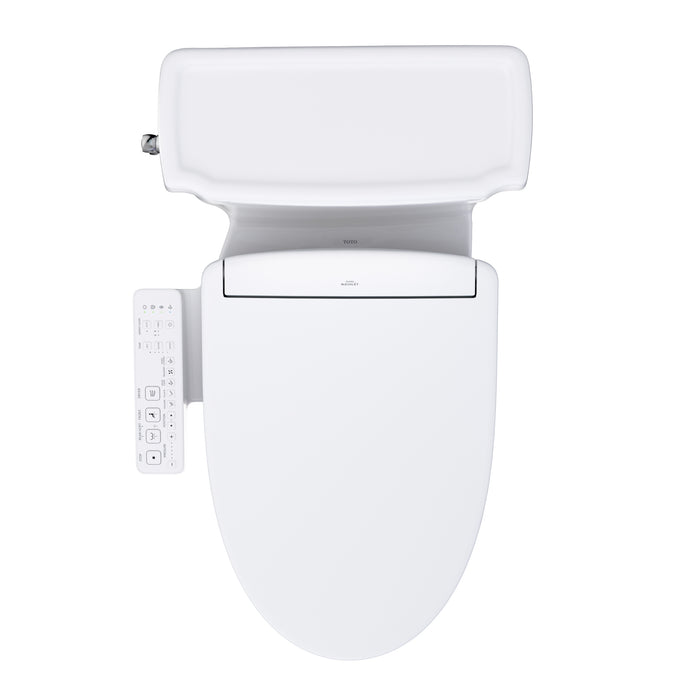

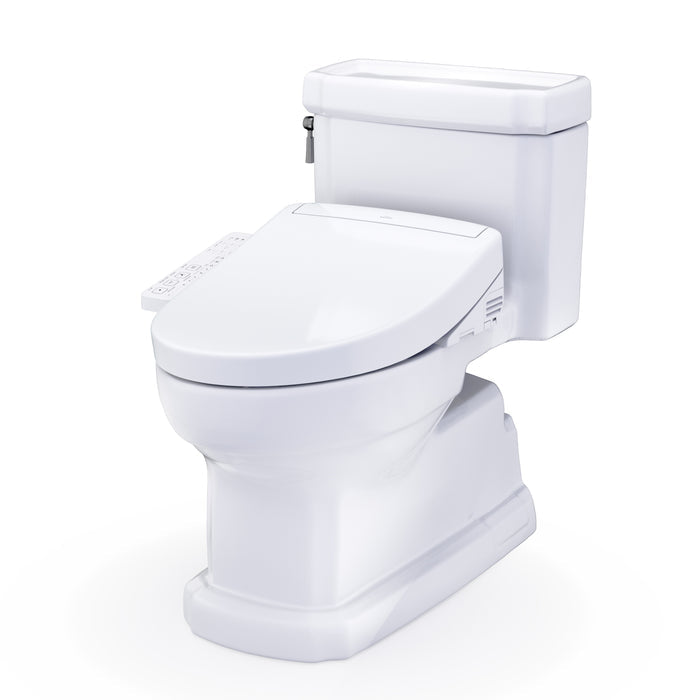

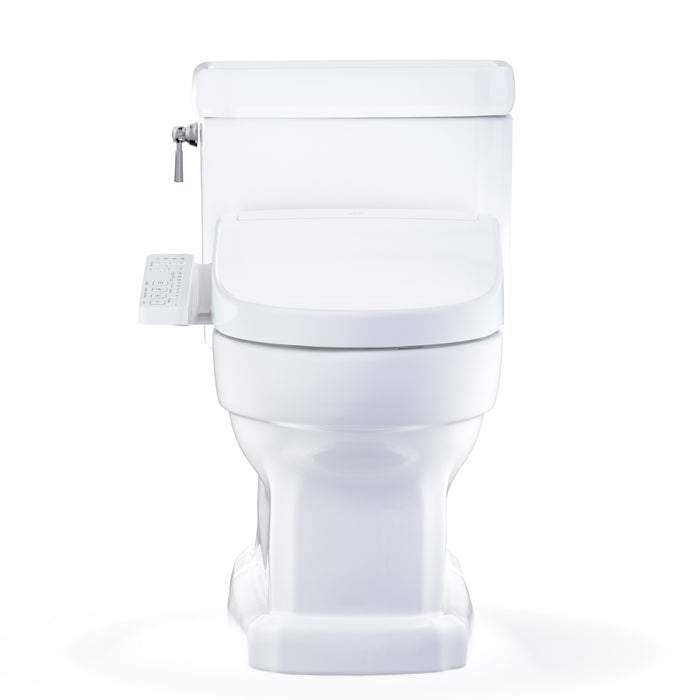

The TOTO MW9743346CEFG#01 Guinevere WASHLET+ S2 One-Piece Toilet features a WASHLET+ bidet seat system that neatly conceals the WASHLET power cord and water supply hose for a clean installation. The high-efficiency TORNADO FLUSH system uses 1.28 GPF. CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces. The system is comprised of a WASHLET and toilet which are specially designed for a seamless installation that compliments your bathroom's decor.

• High-tech Electronic Bidet Seat and Toilet Combination
• Concealed supply connection for seamless installation
• High-efficiency TORNADO FLUSH system - 1.28 GPF (4.8 LPF)

Product Highlights

This TOTO Guinevere one-piece toilet features a high-efficiency TORNADO FLUSH system and CEFIONTECT ceramic glaze. The WASHLET+ system conceals the WASHLET power cord and water supply hose.

Product Information

Standard Information

• Brand: TOTO
• Manufacturer Part Number: MW9743346CEFG#01
• Country of Origin: USA

Technical Specifications

• Flush Rate: 1.28 GPF (4.8 LPF)
• Flush System: TORNADO FLUSH®
• Glaze: CEFIONTECT® ceramic glaze
• Height: 28"
• Rough-in: 12"
• Bowl Shape: Elongated front bowl
• Type: One Piece
• Shape: Elongated
• Installation Type: Floor Mounted
• Theme: Contemporary / Modern
• Flush Type: Tornado Flush Technology
• Included: Handle / Seat / Supply Lines
• Material: Vitreous China, Plastic
• Intended Use: Commercial / Residential
• MaP Performance Rating: Not Rated
• Finish: White
• Lever Placement: Left / Sensor Activated
• Profile: Concealed Trapway
• Collection: Guinevere
• Certifications and Listings: ADA Compliant / California Warning
• Length: 28.25"
• Width: 8.63"
• Trapway Diameter (in.): 2.13
• Product Type: One Piece Toilet With Washlet
• Mounting: Floor Mount/Floor Outlet
• ADA Compliant: Yes
• CEC Compliant: Yes
• CALGreen Certified: Yes
• Water Use: 1.28 GPF (4.8 LPF)
• Min. Water Pressure: N/A
• Water Surface: 7-7/8" x 9-7/8"
• Trap Diameter: 2-1/8"
• Trap Seal: 2-3/16"
• Component #1: CST974CEFGAT40#01
• Component #2: SW3346#01
• Rim Height (in.): 16.125
• Seat Height (in.): 17.5625
• Battery Type: Does Not Contain a Battery
• Water Consumption (GPF): 1.28
• Flush Lever Location: Left
• Rough-in Size (in.): 12
• Flush Valve Size (in.): 3
