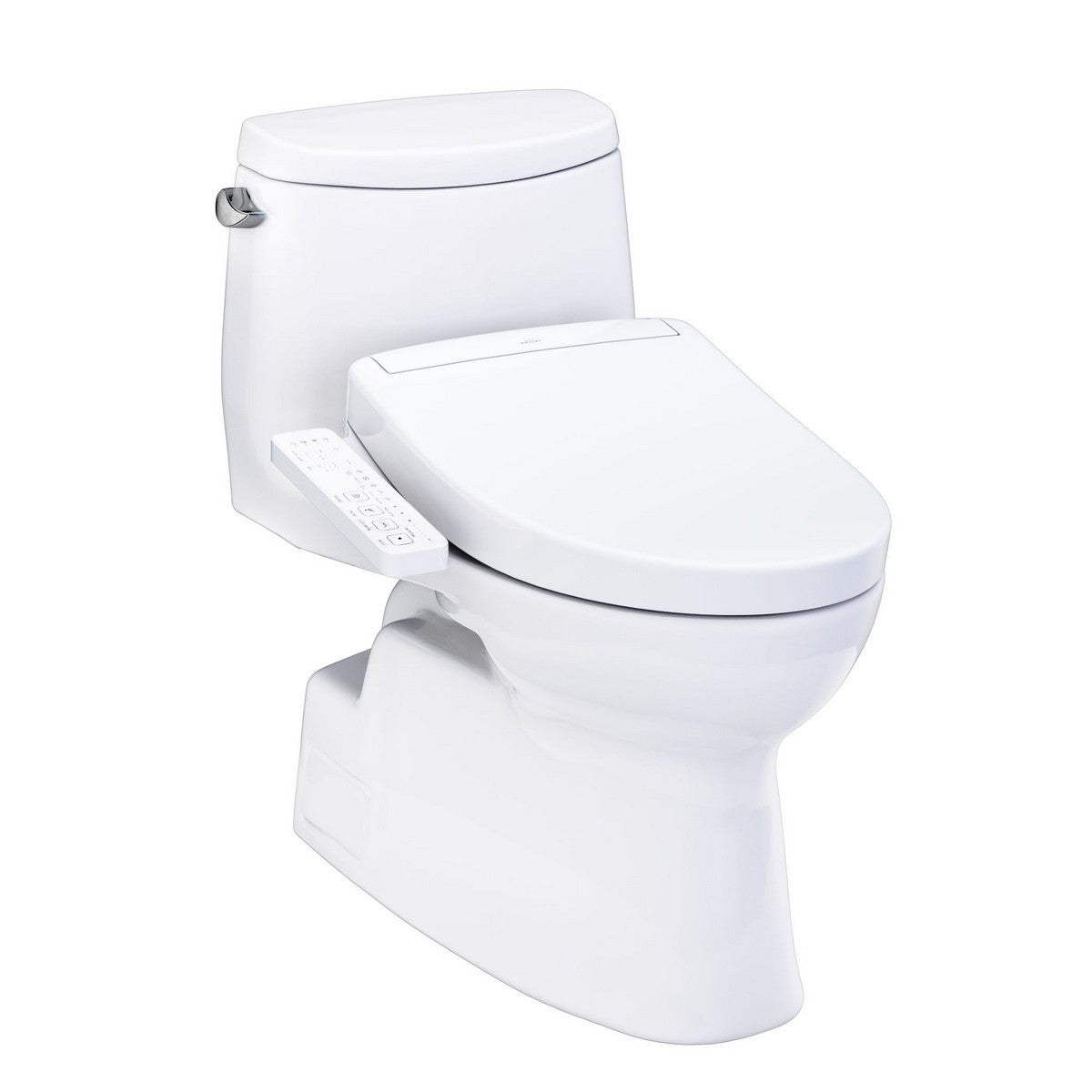

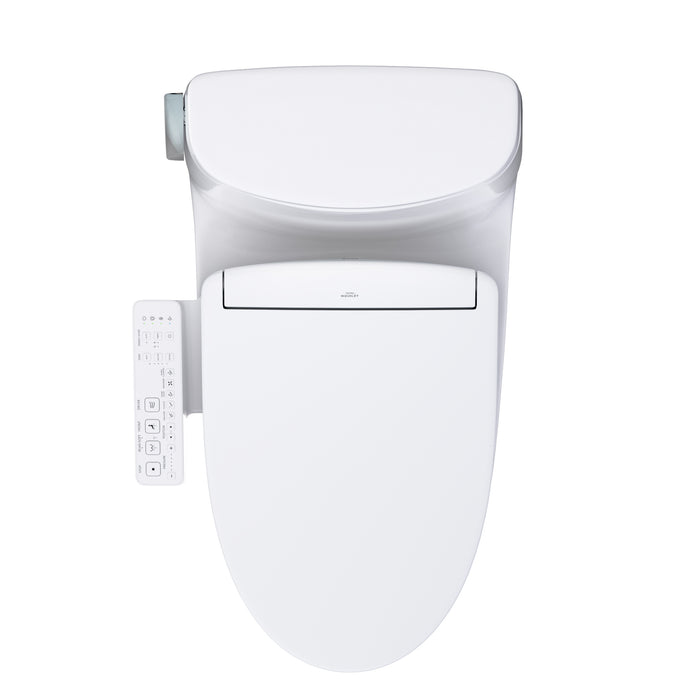

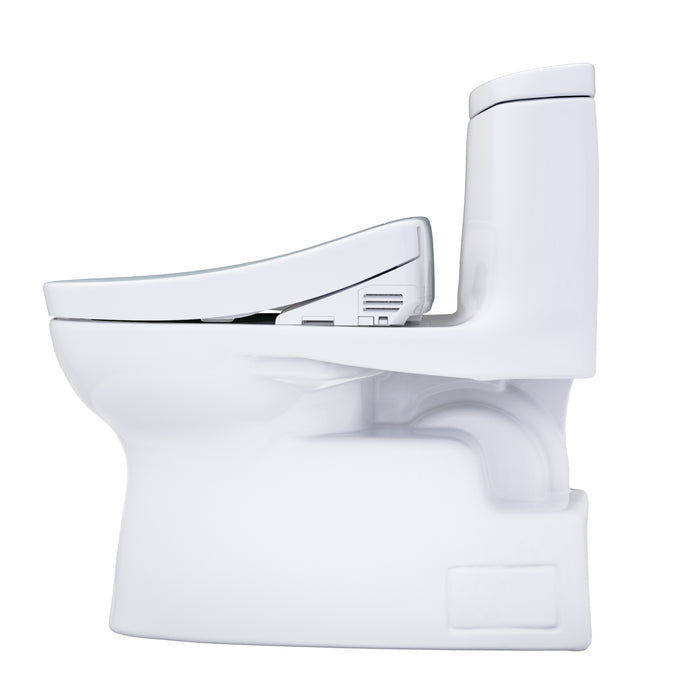

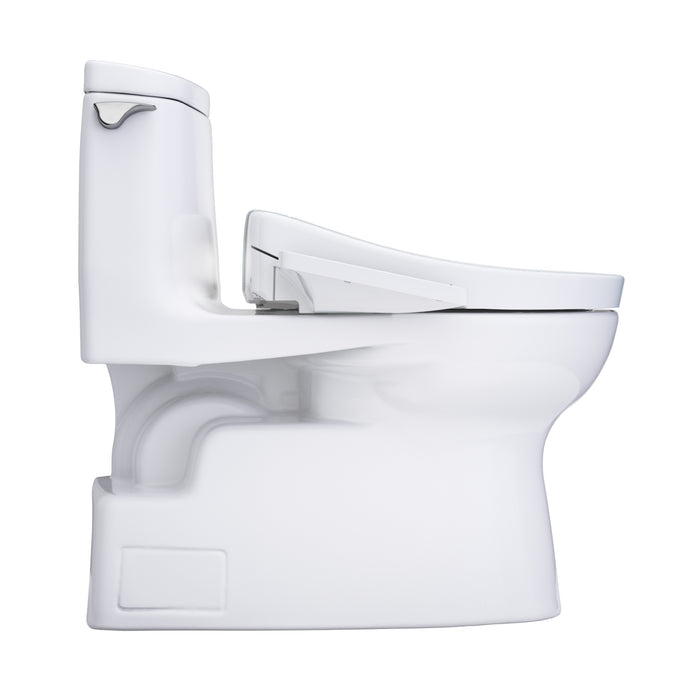

Toto MW6143346CUFG#01 Carlyle II 1G WASHLET+ S2 One-Piece Toilet 1.0 GPF (Elongated) SW3346#01

Product Description

Toto MW6143346CUFG#01 is a Carlyle II 1G one-piece elongated toilet bundled with the WASHLET+ S2 electronic bidet seat, designed to conceal the power cord and water supply for a clean installation. The toilet uses TORNADO FLUSH technology at 1.0 GPF and CEFIONTECT ceramic glaze. The WASHLET+ S2 provides EWATER+ self-cleaning, PREMIST bowl wetting, adjustable front and rear warm water cleansing, heated seat, warm air dryer, and automatic air deodorizer.

• 1.0 GPF Tornado Flush with CEFIONTECT glaze and PREMIST bowl-misting
• WASHLET+ S2 bidet seat with EWATER+ self-cleaning wand, adjustable water temperature (3) and pressure (5), oscillating option
• Heated SoftClose seat, warm air dryer (3 settings), automatic deodorizer, night light, quick-release and concealed supply/power connections

Product Highlights

One-piece elongated universal-height toilet with 1.0 GPF Tornado Flush and integrated WASHLET+ S2 bidet seat featuring EWATER+, PREMIST, heated seat, dryer, and concealed connections.

Product Information

Standard Information

• Brand: TOTO
• Manufacturer Part Number: MW6143346CUFG#01
• Country of Origin: USA; Malaysia

Technical Specifications

• Brand: TOTO
• MPN: MW6143346CUFG#01
• Model Name: Carlyle II 1G WASHLET+ S2 One-Piece Toilet
• Product Type: One-piece toilet with electronic bidet seat bundle
• Seat Model: WASHLET+ S2
• Flush Volume: 1.0 GPF (3.8 LPF)
• Flush System: TORNADO FLUSH (Dynamax Tornado Flush) gravity with dual nozzles and hole-free rim
• Ceramic Glaze: CEFIONTECT
• Bidet Features: EWATER+ self-cleaning wand; PREMIST bowl-misting
• Seat Functions: Front and rear warm water cleansing; adjustable water temperature (3 settings) and pressure (5 settings); oscillating stream option; heated SoftClose seat (3 settings); warm air dryer (3 settings); automatic air deodorizer; night light; quick release; wireless illuminated remote/arm control
• Bowl Style: Elongated, skirted (concealed trapway)
• Height: Universal (comfort) height
• Rough-In: 12" (optional 10" and 14" available)
• Trapway Diameter: 2.5 inches
• Dimensions (L x W x H): 28.38 in x 18.63 in x 28.75 in
• Weight: 126 lb
• Material: Vitreous china (toilet); plastic (seat)
• Mounting Type: Floor mounted / floor outlet
• Included Components: WASHLET+ S2 seat, seat installation hardware, tank-to-bowl gasket and hardware, chrome trip lever, supply lines, toilet bolt caps
• Certifications: ADA compliant; WaterSense; CALGreen; CEC; California Proposition 65 warning applies
• Component Numbers: CST614CUFGAT40#01; SW3346#01
