Toto MS854114EL#01 Eco Ultramax ADA Elongated One Piece Toilet 1.28 GPF

Product Description

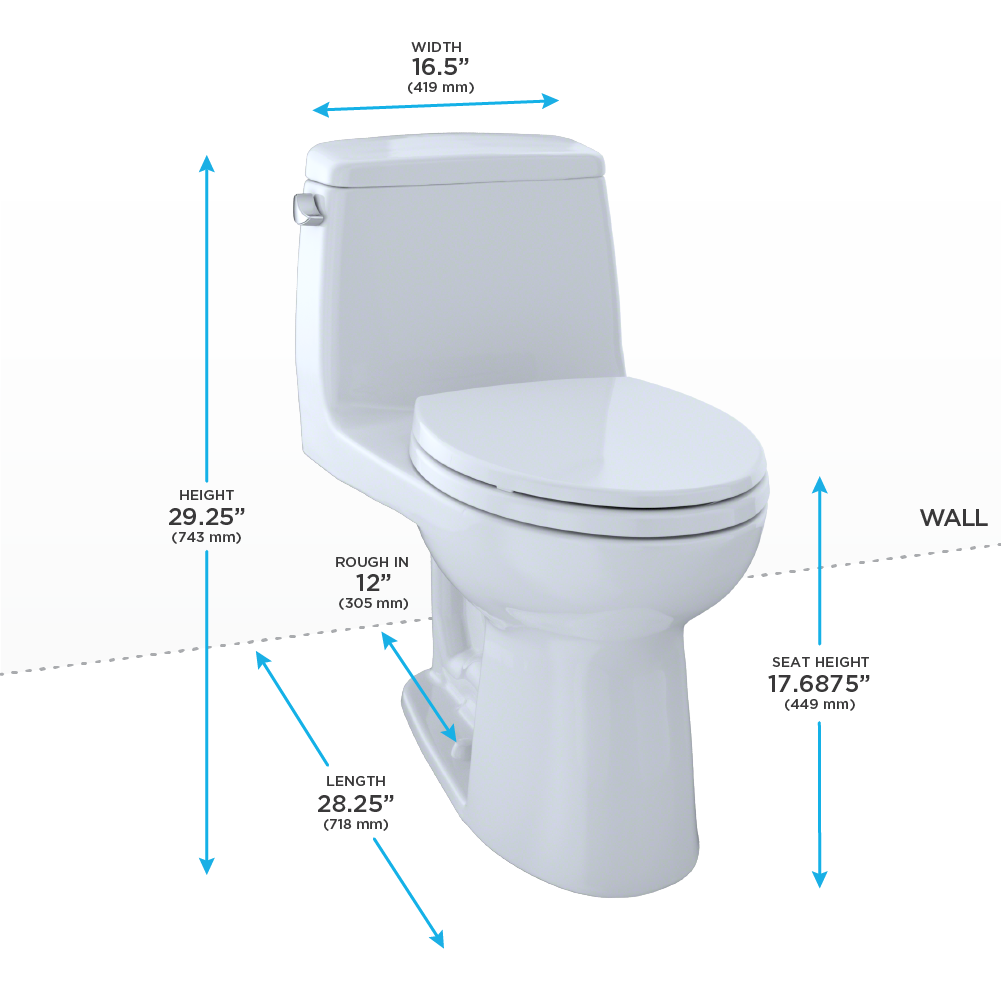

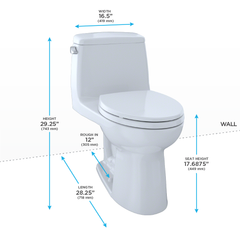

The TOTO MS854114EL#01 is a one-piece, elongated front bowl toilet designed for high efficiency. This floor-mounted unit features an E-Max flush system, utilizing 1.28 gallons per flush for effective waste removal. Constructed from vitreous china, it includes a SoftClose seat and a right-hand chrome trip lever. The toilet is ADA compliant and WaterSense certified, ensuring water conservation and accessibility. It has a 12-inch rough-in and overall dimensions of 28-3/16 inches length, 16-5/8 inches width, and 29-1/8 inches height.

• E-Max flushing system provides a powerful and efficient 1.28 GPF flush.
• One-piece elongated design with a SoftClose seat for enhanced comfort and easier maintenance.
• ADA compliant and WaterSense certified, meeting accessibility and water efficiency standards.

Product Highlights

This TOTO Eco Ultramax toilet combines efficient flushing with an accessible, easy-to-clean design, ideal for modern bathrooms.

Product Information

Standard Information

• Brand: TOTO
• Manufacturer Part Number: MS854114EL#01
• Country of Origin: Domestic

Technical Specifications

• Color: Cotton White
• Shape: Elongated
• Style: Traditional
• Material: Plastic, Vitreous China
• Flush Type: Gravity Flush Toilets
• Compliance: WaterSense, ADA, ASME A112.19.2, CSA B45.1, IAPMO, CUPC, UPC, IPC, NSPC, NPC Canada, EPA, CALGreen, CEC
• Mounting Type: Floor Mounted
• Water Consumption: 1.28 Gallons per Flush
• Seat Material Type: Plastic
• Included Components: E-Max Flush System, Toilet Seat Set, (2) Plastic Base and Cap, Toilet tank, toilet bowl, SS114 SoftClose toilet seat
• Bowl Height: 17-11/16 Inch
• Rough-In: 12 Inch
• Minimum Water Pressure: 8 PSI (Static)
• Trip Lever: Right Hand, Chrome Plated
• Tank Type: High Profile
• Outlet Location: Bottom
• Water Surface Area: 10-1/4 Inch x 8-1/4 Inch
• Trap Diameter: 2-1/8 Inch
• Trap Seal: 2-3/8 Inch
• Flushing System: E-Max
• Trapway Type: Computer Designed, Fully Glazed
• Seat Type: SoftClose Seat
• Series: MS854
• Application: Bathroom
• Handle Style: Lever
• Flush Valve: 3” wide
• Siphon Jet: Extra-large
• Item Type: 1-PC Toilet
