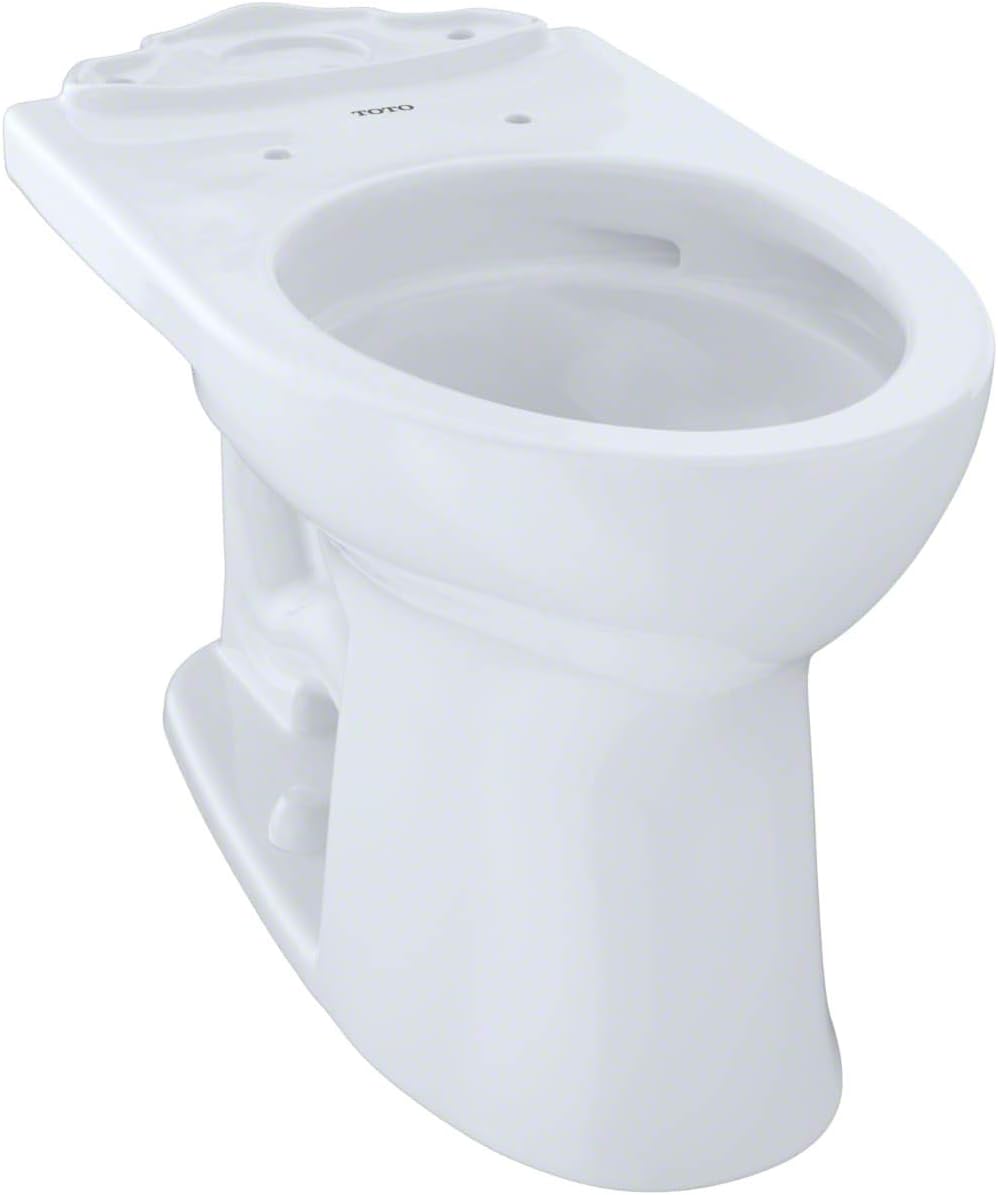

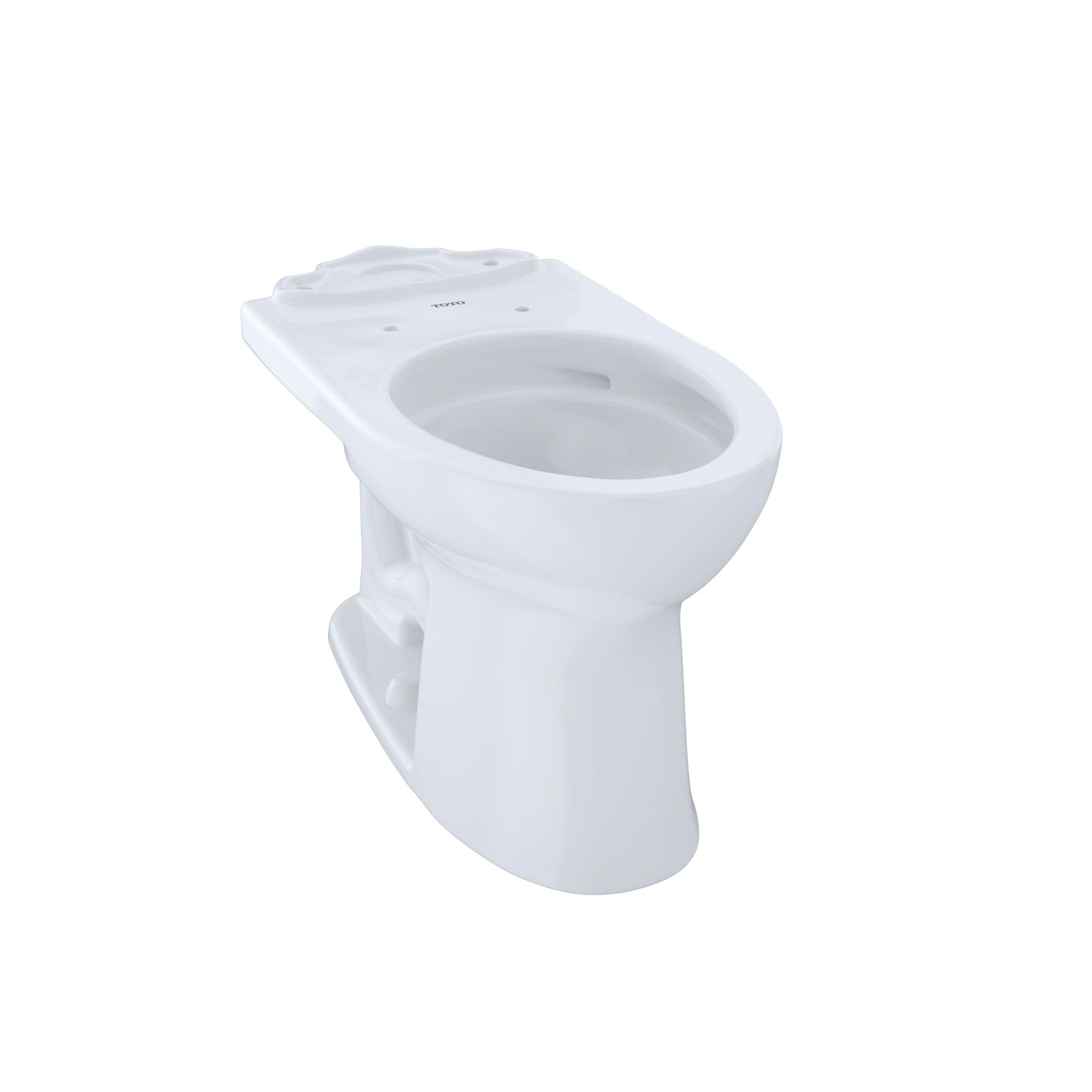

Toto C454CUFG#01 Drake II Elongated Toilet Bowl with Sanagloss

Product Description

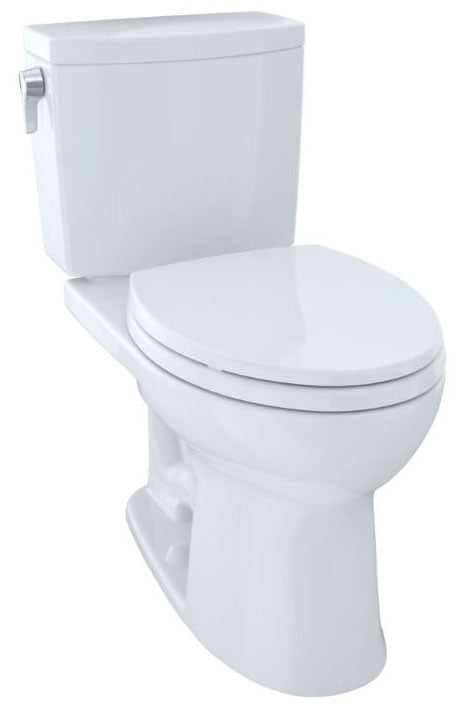

The TOTO C454CUFG#01 Drake II Elongated Toilet Bowl with SanaGloss in cotton white. This bowl is designed for use with the Drake II 1G ST453U 1.0GPF or Drake II ST454E 1.28GPF tank. The Drake II features TOTO’s Tornado Flush system. Additional items needed for installation and use must be purchased separately: tank, wax ring, toilet mounting bolts, water supply lines, and toilet seat.

• Elongated bowl
• SanaGloss finish
• Cotton White color

Product Highlights

The Drake II features TOTO’s Tornado Flush system, a hole-free rim design with dual-nozzles that creates a centrifugal washing action.

Product Information

Standard Information

• Brand: TOTO
• Manufacturer Part Number: C454CUFG#01
• Country of Origin: USA|Vietnam|Thailand

Technical Specifications

• Color: White
• Shape: Elongated
• Style: Contemporary
• Finish: Cotton
• Material: Vitreous China
• Flush Type: Gravity Flush Toilets
• Installation Type: Floor Mounted
• Number of Handles: 1
• Water Consumption: 1 Gallons per Flush
• Measurement System: US
• Seat Material Type: Plastic
• Batteries Included?: No
• Batteries Required?: No
• Included Components: C454CUFG#01
• Brand: TOTO
• MPN: C454CUFG#01
• Manufacturer: TOTO
• Model / MPN: C454CUFG#01
• Number of Items: 1.0
• Product Type: Bidet, Toilet and Urinal
• Product Group: Home Improvement
• Type: Elongated Bowl
• Width: 15"
• Height: 16.125"
• Length: 27.875"
• Rim_Height: 16.125"
• Unit_Width: 15"
• WaterSense: Yes
• FinishColor: White Shades
• Finish_Name: Cotton White
• ADA_Compliant: Yes
• Toilet_Height: Chair Height
• Gallons_per_Flush: 1.0/1.28
• RoughIn_Dimension: 12"
• Toilet_Bowl_Shape: Elongated
• TripLever_Position: Left Hand Trip Lever
• Commercial_or_Residential: Primarily Residential
• Model#: C454CUFG#01
• Manufacturer Name: Toto
• SKU: TC454CUFG01
• Product Weight: 57.3
• Product Height: 16.125
• Product Width: 15.0
• Product Length: 27.875
• Bowl Height: 17-1/4 Inch
• Brand Name: Drake II 1G
• CATALOG NUMBER: C454CUFG#01
• COMMODITY CODE DESCRIPTION LEVEL 3: Toilet Bowls
• Color/Finish: Cotton
• Exclusions: Toilet Seat
• Gallons Per Flush: 1
• Inclusions/Features: Cefiontect Glaze
• Mounting Type: Floor, Wall
• Outlet Location: Bottom
• Product Sub-Type: Toilet Bowl
• Rough-In: 12 Inch
• Series/Model: C454
• Trap Diameter: 2-1/8 Inch
• Trap Seal: 2-1/8 Inch
• Bowl Shape: Elongated
• Trapway: Glazed
• Flush Rate: 1.28 gpf
• Minimum Water Pressure: 8 psi
• Rim Height: 17-1/4 in
• Rough-In Size: 12 in
• Suitable For Use With: Drake II Close Coupled Toilets
• Trapway Size: 2-1/8 in
• Water Surface Area: 7-1/8 x 9-1/8 in
• Model Number: C454CUFG#01
• Product type: Universal Height
• Ada compliant: Yes
• Bowl height: 16-1/8 IN
• Seat height: 17-1/4 IN
• Technology: CeFiONtect Glaze
• Includes: Bowl Only
• Color family: White
• Collection: Drake II
• Overall Length: 28-1/2"
• Overall Width: 15"
• Trapway (Discharge Passageway) Size: 2-1/8"
• Distance Between Toilet Seat Installation Holes: 5-1/2"
• Branded Surface Treatment: CeFiONtect Glaze
• Configuration: Bowl Only
• Theme: Basic
• Lead Leaching Certified NSF/ANSI 61: N/A (Regulation does not apply)
• UPC: 739268233515
• Spud Location [Specifications]: Top
• ADA Compliance [Specifications]: No
• Mounting Style [Specifications]: Floor
• Flushing Method [Specifications]: Gravity Fed
• Weight Capacity [Specifications]: 300 lb
• Brand and Series [Specifications]: Toto Drake(R) II
• Bolt to Seat Front [Specifications]: 18-1/2"
• Water Surface Area [Specifications]: 7-1/8 in x 9-1/8 in
• Spud Connection Size [Specifications]: 1 1/2 in
• For Use With Tank Type [Specifications]: Gravity Fed Tank
• Green Environmental Attribute [Specifications]: EPA Water Sense
• For Use With Mfr. Model Number [Specifications]: C454CUFG#01
• Country of Origin (subject to change) [Specifications]: United States
• Bowl Depth [Specifications]: 24-3/8"
• Bowl Shape [Specifications]: Elongated
• Bowl Width [Specifications]: 14-3/4"
• Collection [Specifications]: Drake II
• Rim Height [Specifications]: 16 1/8 in
• Bowl Height [Specifications]: 16"
• Trapway Dia. [Specifications]: 2 1/8 in
• Antimicrobial [Specifications]: No
• Rough-In [Specifications]: 12 in
• Standards [Specifications]: ASME A112.19.2/CSA B45.1; IAPMO(cUPC); UPC; IPC; NSPC; NPC; AB715; CALGreen Title 24; BAA; ADA; CA Prop 65
• Features [Specifications]: Universal Height 12 in Rough, Supply Line Sold Separately
• Includes [Specifications]: CEFIONTECT Ceramic Glaze
• Depth [Specifications]: 28-1/2"
