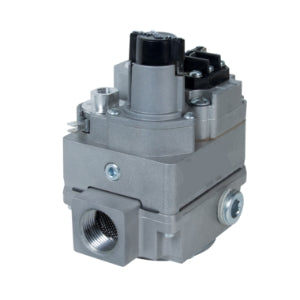

Totaline P671-1369 Universal Manifold Gas Valve 3/4 in 1000 Btu/hr Natural and 2500 Btu/hr LP Gas

Product Description

The Totaline P671-1369 is a 1-Stage Universal Manifold Gas Valve with a three-fourths inch pipe size. This model supports both natural gas at 1000 Btu per hour and LP gas at 2500 Btu per hour. It features a standing pilot ignition and operates using a twenty-four-volt coil. The valve is engineered for a maximum pressure of zero point five pounds per square inch.

• Line interrupter for safety
• Convertible between natural and LP gas
• Inlet and outlet screens included

Product Highlights

The Totaline P671-1369 gas valve is ideal for those requiring a reliable and efficient solution for gas management in HVAC systems.

Product Information

Standard Information

• Brand: Totaline
• Domestic/Import: Import

Technical Specifications

• Frequency: 60 Hertz
• Max Pressure: 0.5 Pounds per square inch
• Pipe Size: 3/4 x 3/4 Inches
• Type of Fuel: LP, Natural Gas
• Voltage: 20-24 Volts
• Nominal Size: 3/4 in
• Series: P671
• Gas Type: Liquid Propane/Natural Gas
• Pressure Rating: 0.5 psi
• Type: 1-Stage
• Temperature Rating: -40 to 175 degrees F
• Ignition Type: Standing Pilot
• Nominal Capacity: 1000 Btu/hr Natural and 2500 Btu/hr LP Gas
• Coil Voltage: 24 V
