Totaline p530-2456 Universal Txv R-22 6 Ton

Product Description

The TOTALINE p530-2456 is a universal thermostatic expansion valve (TXV) designed for R-22 refrigerant systems rated from 4.5 to 6 tons. It meters refrigerant flow into the evaporator coil, maintaining optimal superheat to protect the compressor and maximize system efficiency. Balance-ported construction stabilizes operation across varying load conditions. A built-in check valve makes the unit suitable for both air conditioning and heat pump applications. Externally adjustable superheat allows field tuning without replacing the valve. Licensed HVAC technicians install this component as part of routine system upgrades, refrigerant conversions, or metering device replacements.

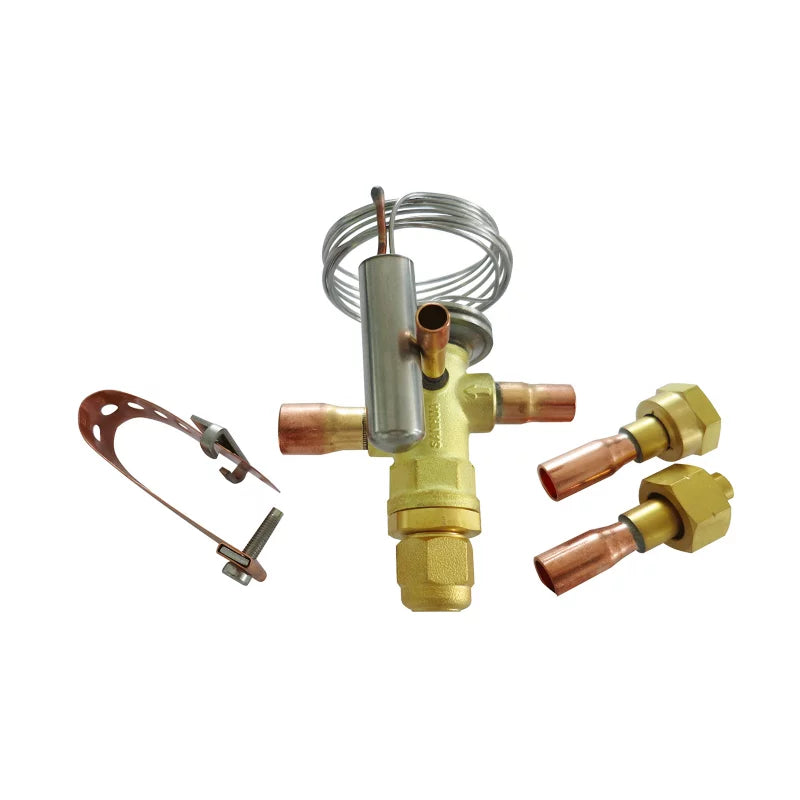

This valve is suited for commercial and residential split systems using R-22 refrigerant in the 4.5 to 6 ton capacity range. The kit ships with three connection options — ODF, Chatleff, and Aeroquip — supporting a wide range of existing line sets and coil configurations. It is compatible with both copper and aluminum evaporator coils, reducing the need for adapter fittings in mixed-material systems. Each kit includes 35 inches of foam insulating tape and cross-reference information printed on the box to assist with sourcing and verification on the job.

Key Features

• Balance-ported construction for stable operation under varying load conditions
• Built-in check valve supports both A/C and heat pump configurations
• Externally adjustable superheat for field tuning without valve replacement
• Compatible with copper and aluminum evaporator coils
• Three connection options included per kit: ODF, Chatleff, and Aeroquip
• Includes 35 inches of foam insulating tape
• UL Recognized; cross-reference data printed on each box

Compatibility

Designed as a universal OEM-style replacement TXV for R-22 air conditioning and heat pump systems in the 4.5 to 6 ton capacity range.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable mechanical codes. Recover all refrigerant and verify system pressure is at zero before opening any refrigerant circuit. Select the appropriate connection fitting from the included kit before brazing or making flare connections. After installation, check and adjust superheat externally to confirm proper valve operation before returning the system to service.

Technical Specifications

• Refrigerant: R-22
• Capacity: 6 Ton (4.5 to 6 Ton range)
• Metering Device Type: TXV / TEV Thermostatic Expansion Valve
• Maximum Working Pressure: 610 psig
• Inlet Connection Size: 3/8 inches
• Outlet Connection Size: 1/2 inches
• External Equalization Size: 1/4 inches
• Connection Type: Outer Diameter Female (ODF)
• Composition: Bi-Metal
• Length: 3.5 inches
• Width: 1.5 inches
• Height: 1.5 inches
• Weight: 1.5 pounds
• Country of Origin: China

Standard Information

• Brand: TOTALINE
• Manufacturer Part Number: p530-2456
