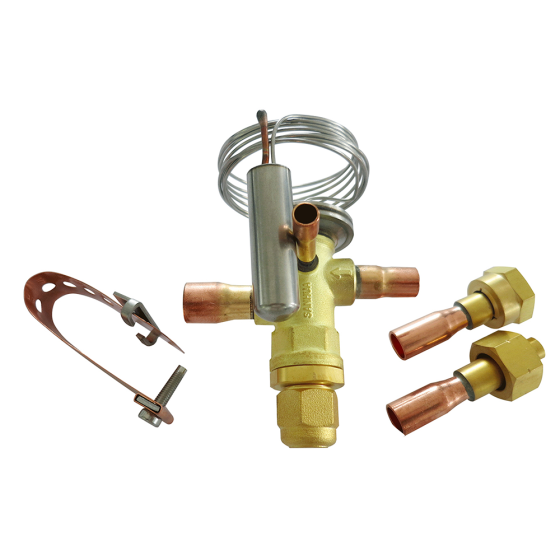

Totaline P530-2456 Universal Thermostatic Expansion Valve R-22 (4.5 - 6 Ton)

Product Description

The Totaline P530-2456 Universal Thermostatic Expansion Valve is suitable for R-22 refrigerant systems with a capacity ranging from four point five tons to six tons. This valve includes a balance ported construction for improved efficiency and allows for externally adjustable superheat to enhance performance.

• Compatible with A/C systems and heat pumps.
• Constructed for use with both copper and aluminum evaporator coils.
• UL Recognized for safety and reliability.

Product Highlights

This valve serves as a critical component for managing refrigerant flow effectively in HVAC applications.

Product Information

Standard Information

• Brand: Totaline
• Type: Expansion Valve

Technical Specifications

• MPN: P530-2456
• UPC: 822529779157
• Capacity: 6 Ton
• Connection Type: Outer Diameter Female (ODF)
• GTIN: 00822529779157
• Inlet Connection Size: 3/8 inches
• Maximum Working Pressure: 610 PSIG
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Outlet Connection Size: 1/2 inches
• Refrigerant: R-22
• External Equalization Size: 1/4 inches
