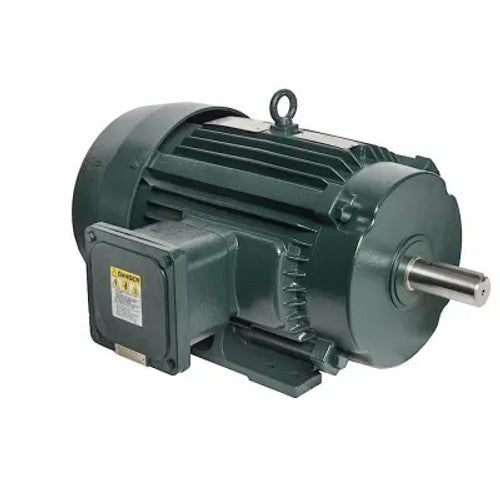

TOSHIBA Y754XPEA41A-P Electric Motor 7.5 HP

Product Description

The TOSHIBA Y754XPEA41A-P is a three-phase electric motor designed for various applications. It operates at 230 or 460 volts and a frequency of 60 Hz. This motor provides 7.5 horsepower at 1800 RPM. With a frame size of 213T, it features a Totally Enclosed Fan Cooled (TEFC) enclosure, making it suitable for explosion-proof settings. The motor utilizes Class F insulation and is built for continuous duty.

• Power: 7.5 HP
• Speed: 1800 RPM
• TEFC Enclosure for protection

Product Highlights

This electric motor is ideal for HVAC systems, pumps, and other industrial applications. Its robust design ensures reliability and longevity.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y754XPEA41A-P

Technical Specifications

• Horsepower: 7.5 HP
• Rated Speed: 1800 RPM
• Frame Size: 213T
• Input Voltage: 230/460 V
• Frequency: 60 Hz
• Phase: 3 Phase
• Enclosure Type: TEFC
• NEMA Design: B
• Insulation Class: F
• Duty Cycle: Continuous Duty
• Full Load Amperage: 9.8 Amp
• Locked Rotor Amperage: 127/63.5
• Full Load Torque: 22.4 lb-ft
• Locked Rotor Torque: 271
• Breakdown Torque: 344
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Code: H
• kW: 5.5
• Nominal Efficiency: 91.7
• Power Factor: 79.9
• Full Load Efficiency: 91.8 %
• 3/4 Load Efficiency: 90.9 %
• 1/2 Load Efficiency: 88.5 %
• Full Load Power Factor: 80.8 %
• 3/4 Load Power Factor: 75.3 %
• 1/2 Load Power Factor: 65.8 %
• Drive End Bearing: 6308UUCM
• Opposite Drive End Bearing: 6308UUCM
• Weight: 238 lbs
• Mounting Type: Rigid Base
• Motor Frame Construction: Cast Iron
