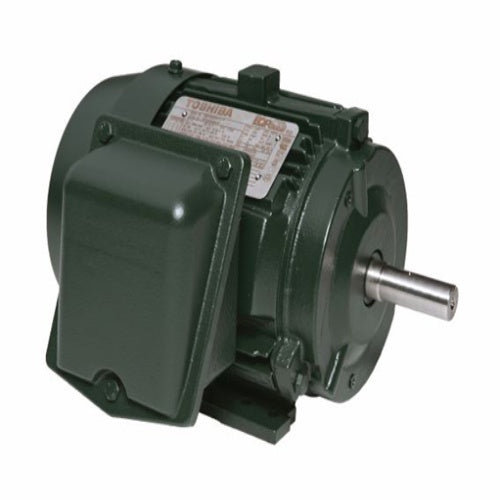

TOSHIBA Y754SDSR42A-P AC Motor

Product Description

The TOSHIBA Y754SDSR42A-P is a continuous-duty, three-phase AC motor designed for various general purpose applications. This motor features a totally enclosed fan cooled (TEFC) enclosure, ensuring durability and efficiency in operation. It is suitable for use in compressors, fans, and blowers.

• Horsepower: 7.5 hp
• Speed: 1800 rpm
• Operating Voltage: 230/460 VAC

Product Highlights

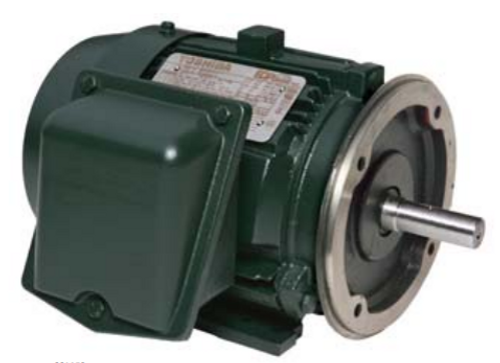

This motor offers reliable performance with a service factor of 1.15 and operates at a frequency of 60 Hz. With its C-Face foot mount and 213TC frame size, it combines versatility and ease of installation.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y754SDSR42A-P

Technical Specifications

• Type: Continuous-Duty Type IKH
• Application Type: General Purpose AC Motors, Compressor Motors, Fan & Blower Motors
• Power Output (kW): 5.6
• Input Current: 19.6/9.8 A
• Phase: 3 ph
• Enclosure Type: TEFC
• Shaft Size: 1-3/8 in
• Torque Rating: 22.4 ft-lb
• Mounting Type: C-Face Foot
• Weight: 192 lbs
• Dimensions: 19.4 in L x 13.2 in H
