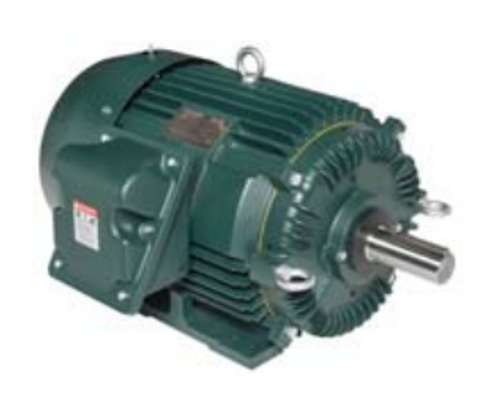

TOSHIBA Y754FAGR41A-P Electric Motor 7.5 HP

Product Description

The TOSHIBA Y754FAGR41A-P is a 7.5 HP electric motor ideal for cooling tower applications. This motor operates at 230/460 volts, 60 Hz. It reaches a speed of 1800 RPM and features a frame size of 213T. The Totally Enclosed Air Over (TEAO) enclosure provides protection in various environments. Designed for continuous duty, this 3-phase motor meets NEMA MG1 Part 31 standards.

• Horsepower: 7.5 HP
• Speed: 1800 RPM
• Enclosure: TEAO

Product Highlights

The TOSHIBA Y754FAGR41A-P motor is built for efficiency and durability in demanding applications. Its insulation class is F, ensuring reliability in constant use.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y754FAGR41A-P

Technical Specifications

• Horsepower: 7.5 HP
• Rated Power: 5.5 kW
• Input Voltage: 230/460 V
• Frequency: 60 Hz
• Phase: 3 Phase
• Full Load Amperage: 9.8 Amp
• Speed: 1800 RPM
• Full Load Speed: 1760 RPM
• Frame Size: 213T
• Enclosure: TEAO
• Efficiency at Full Load: 91.8 %
• Service Factor: 1.15
• Insulation Class: F
• Duty Type: CONT
• Ambient Temperature: 40 C
• Weight: 186 lbs
