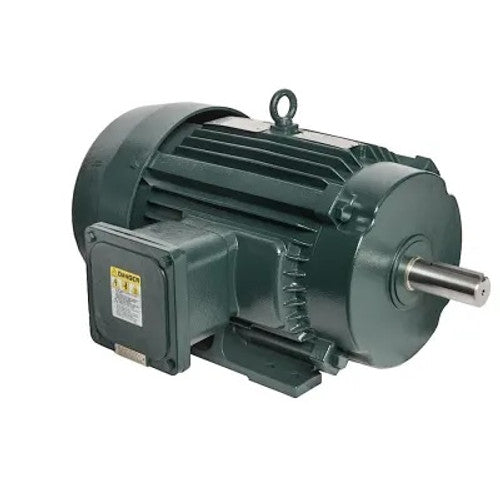

TOSHIBA Y752XPEA41A-P Electric Motor 7.5 HP

Product Description

The TOSHIBA Y752XPEA41A-P is a three-phase electric motor designed for demanding applications. This motor operates at a voltage of 230/460 volts and runs at a frequency of sixty hertz. It features a robust 213T frame and a horsepower rating of seven point five HP. The enclosure type is Totally Enclosed Explosion Proof (TEXP), making it suitable for challenging environments. The motor achieves a speed of approximately three thousand six hundred RPM.

• Three-phase motor with seven point five HP rating.
• Operates at voltage levels of two hundred thirty or four hundred sixty volts.
• Robust TEXP enclosure for added safety in hazardous locations.

Product Highlights

This electric motor is ideal for continuous duty applications where reliability and efficiency are paramount.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y752XPEA41A-P

Technical Specifications

• Horsepower: 7.5 HP
• Rated Power: 5.5 kW
• Voltage: 230/460 V
• Frequency: 60 Hz
• Phase: 3 Phase
• RPM: 3600
• Full Load RPM: 3500
• Frame Size: 213T
• Enclosure: TEXP
• Efficiency: 89.5%
• Full Load Amperage: 9 Amp
• Weight: 218 lbs
• Motor Frame Construction: Cast Iron
