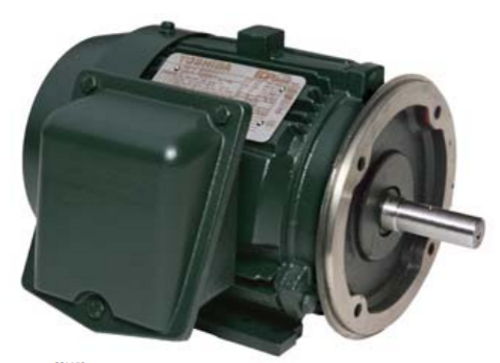

TOSHIBA Y752SDSR42A-P AC Motor 7.5 hp C-Face Footed

Product Description

The TOSHIBA Y752SDSR42A-P is a three-phase AC motor with a power rating of seven point five horsepower. It operates efficiently at 230/460 VAC and 60 Hz, making it suitable for various applications. The motor features a C-Face Footed mounting design and is enclosed in a Totally Enclosed Fan Cooled (TEFC) housing, ensuring reliable operation in diverse conditions.

• Horsepower: 7.5 hp
• Speed: 3600 RPM
• Continuous duty rated

Product Highlights

This motor is designed for general-purpose use. It is ideal for applications including compressors, fans, and blowers. The robust construction includes a cast iron frame, which provides durability and stability.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y752SDSR42A-P

Technical Specifications

• Voltage: 230/460 VAC
• Frequency: 60 Hz
• Phase: 3 ph
• Speed: 3600 RPM
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Frame Size: 213TC
• Mounting Type: C-Face Footed
• Service Factor: 1.15
• Insulation Class: F
• Ambient Temperature: 40 deg C
• Rated Current: 18/9 A
• Torque: 11.3 ft-lb
• Rotation: CW/CCW
• Duty: Continuous
• NEMA Design: B
• Efficiency at Full Load: 89.7%
• Weight: 185 lbs
• Dimensions: 19.4 in L x 13.2 in H
• Shaft Size: 1-3/8 in
• Material: Cast Iron
