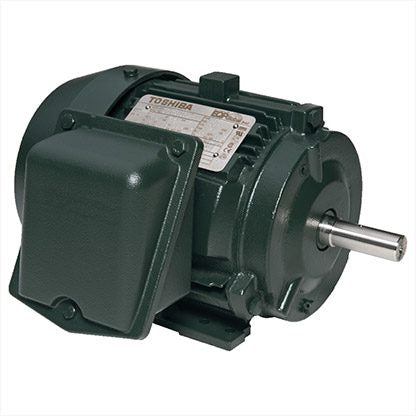

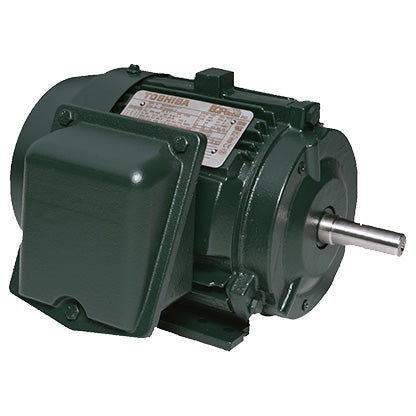

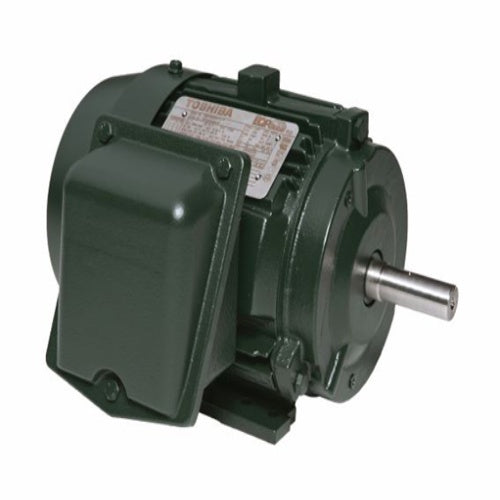

TOSHIBA Y752SDSR41A-P AC Motor 5.6kW 7.5HP TEFC

Product Description

The TOSHIBA Y752SDSR41A-P is a three-phase AC motor designed for continuous duty. It features a totally enclosed fan-cooled (TEFC) enclosure suitable for various applications including compressors, fans, and blowers.

• Voltage Support: 230/460 VAC
• Motor Speed: 3600 RPM
• Foot-mounted Design

Product Highlights

This motor is suitable for general-purpose applications in HVAC and industrial settings.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y752SDSR41A-P

Technical Specifications

• Frame Size: 213T
• Horsepower: 7.5 hp
• Power: 5.6 kW
• Input Voltage: 230/460 VAC
• Amperage Rating: 18/9 A
• Full Load Amperage: 18/9 A
• Locked Rotor Amperage: 60 A
• Operating Frequency: 60 Hz
• Speed: 3600 RPM
• Service Factor: 1.15
• Material: Cast Iron
• Mounting Style: Foot
• Dimensions: 19.4 in L x 13.2 in H
• Weight: 168 lbs
• Efficiency: 89.7%
• NEMA Design: B
