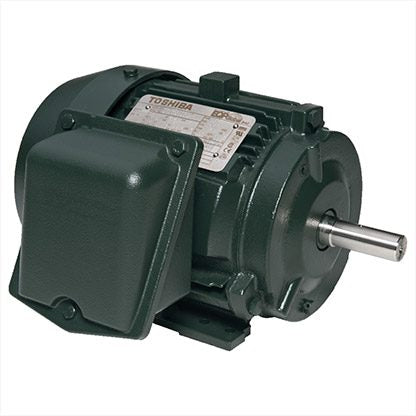

TOSHIBA Y752SDMV7FS-PL Electric Motor 10 HP 230/400 Volts Standard

Product Description

The TOSHIBA Y752SDMV7FS-PL is an AC electric motor suitable for various general-purpose applications. This motor operates efficiently at a rated speed of 3600 RPM and is designed for a voltage input of 230/400 volts, making it ideal for industrial needs.

• Power output: Rated at 10 HP
• Enclosure type: TEFC
• Frame size: 132M

Product Highlights

This motor is effective for standard industrial practices requiring reliable performance.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y752SDMV7FS-PL

Technical Specifications

• Voltage: 230/400 volts
• Horsepower: 10 HP
• KW: 7.5
• RPM: 3600
• Frame: 132M
• Phase: 3 Phase
• Hertz: 50/60
• Enclosure: TEFC
• Motor Type: AC Motor
• Motor Standards: IEC
• Efficiency: IE3
• Full Load Amps: 25.1/14.5
• Duty: S1
• Ambient Temperature: 40C
• Service Factor: 1.1
• Ingress Protection: IP55
• Frame Material: Aluminum
• Space Heaters: Optional
• Pole: 2
• NEMA: Premium Efficiency
• Input Current: AC
