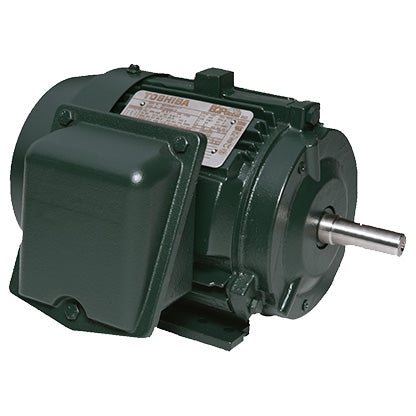

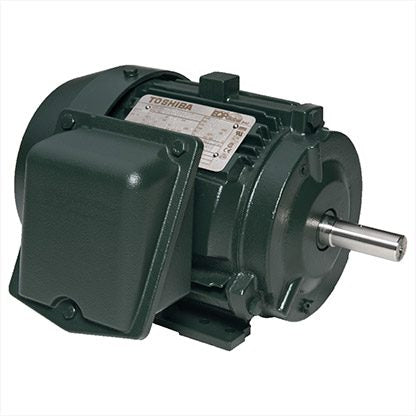

TOSHIBA Y554SDMV7FS-PL Electric Motor 5.5 KW (132S Frame)

Product Description

The TOSHIBA Y554SDMV7FS-PL is an electric motor suitable for various industrial applications. This motor features a 132S frame and operates efficiently at a speed of 1800 RPM. Designed as a three-phase unit, it can receive power at either 230/400 or 230/460 voltage inputs. The motor comes in a Totally Enclosed Fan Cooled (TEFC) configuration and is suitable for foot mounting (B3).

• Horsepower: Available in 5.5 HP and 7.5 HP
• Speed: 1800 RPM
• Enclosure: TEFC for enhanced protection

Product Highlights

This electric motor is ideal for applications that require reliable performance, durability, and efficiency.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y554SDMV7FS-PL

Technical Specifications

• Horsepower: 7.5 HP
• Power: 5.5 KW
• Speed: 1800 RPM
• Voltage: 230/400 V
• Phase: 3 Phase
• Frame Size: 132S
• Enclosure: TEFC
• Frequency: 50 Hz / 60 Hz
• Full Load Amps: 20.4/11.8 A
• Current Type: AC
• Mounting Type: B3 Foot
• Nominal Full Load Efficiency: 89.6
• Weight: 62 kg
