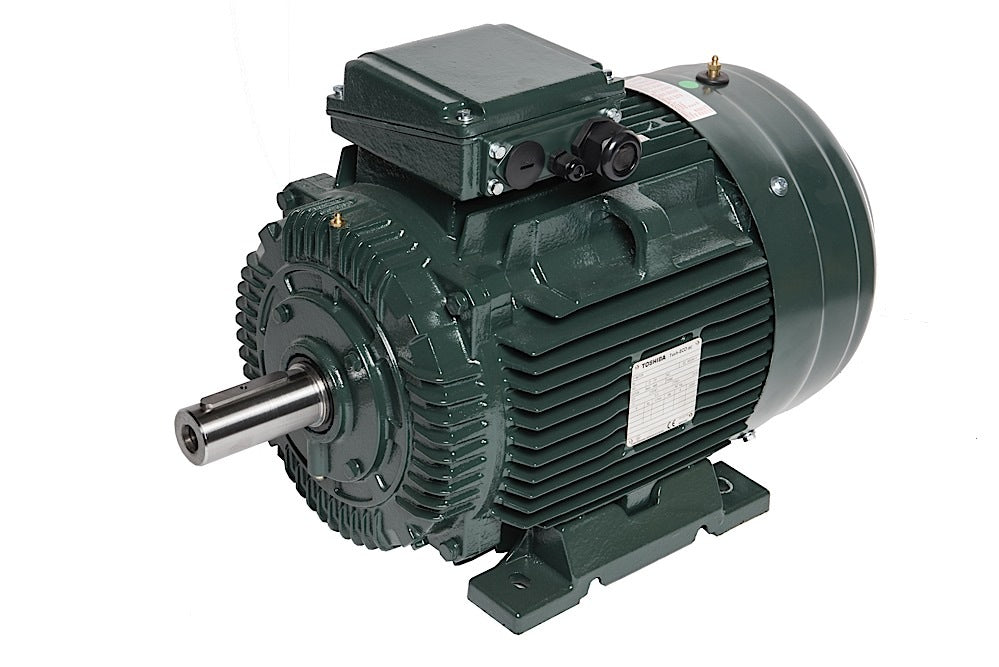

TOSHIBA Y552SDMV7FS-PL Electric Motor 5.5 KW

Product Description

The TOSHIBA Y552SDMV7FS-PL is a three-phase AC electric motor ideal for general-use applications. This motor operates on dual frequencies of fifty and sixty hertz and features a Totally Enclosed Fan Cooled (TEFC) design. It complies with IEC standards and supports multi-mount configurations. Suitable applications include pumps, fans, conveyors, compressors, centrifuges, and mixers.

• Three-phase AC motor
• Totally Enclosed Fan Cooled (TEFC) design
• Dual-frequency operation: 50/60 Hz

Product Highlights

The design of the TOSHIBA electric motor ensures efficient performance for various applications, combining reliability and accessibility for trade professionals.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y552SDMV7FS-PL

Technical Specifications

• Motor Type: AC Motor
• Rated Power: 5.5 KW
• Horsepower: 7.5 HP
• Motor Voltage Phases: 3 Phase
• Input Voltage: 230/400 V
• Motor Frequency: 50/60 Hz
• Motor RPM: 3600 RPM
• Full Load Amps: 18/10.4 A
• Enclosure Rating: IP55
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Frame Model: 132S
• Frame Material: Aluminum
• Efficiency: IE3
• Duty Cycle: S1
• Ambient Temperature: 40C
• Service Factor: 1.1
• Motor Standards: IEC
• Weight: 53 kg
• Nominal FL EFF: 89.2
