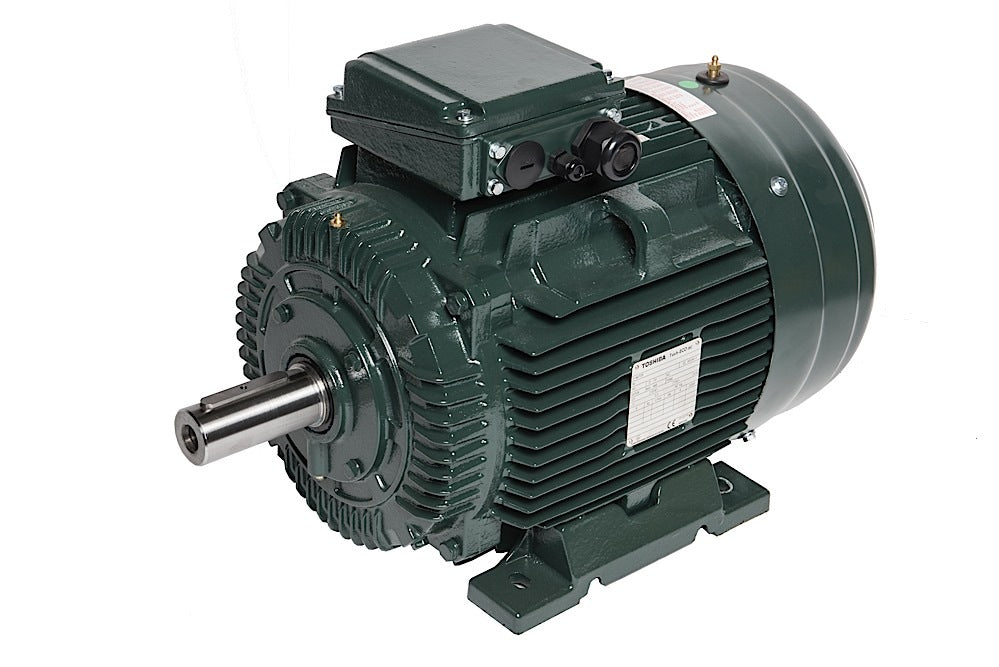

TOSHIBA Y226SDMV7FS-PL Electric Motor 3 HP TEFC

Product Description

The TOSHIBA Y226SDMV7FS-PL is a three-phase electric motor. It is suitable for general-purpose applications and offers reliable performance. This motor features a Totally Enclosed Fan Cooled (TEFC) design, which helps in protecting its internal components from external elements.

• Rated for three horsepower (3 HP)
• Operates at one thousand two hundred RPM
• Supports dual voltage operation at two hundred thirty to four hundred volts

Product Highlights

This motor is built to meet IEC standards while providing IE3 efficiency.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y226SDMV7FS-PL

Technical Specifications

• Motor Type: AC Motor
• Power: 2.2 kW
• RPM: 1200
• Number of Poles: 6
• Input Voltage: 230/400 V
• Frequency: 50/60 Hz
• Input Current: AC
• Full Load Amperage: 9/5.2 A
• Phase: 3 Phase
• Efficiency Class: IE3
• Enclosure: TEFC
• Frame Size: 112M
• Motor Standards: IEC
• Duty Cycle: S1
• Ambient Temperature: 40C
• Service Factor: 1.1
• Ingress Protection: IP55
• Frame Material: Aluminum
• Space Heaters: Optional
