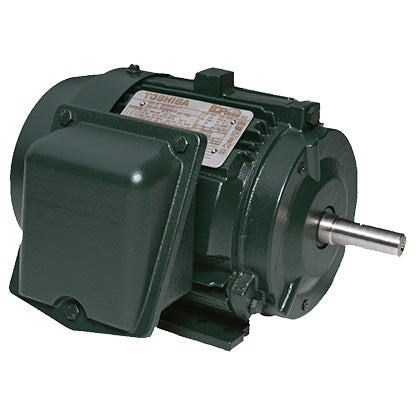

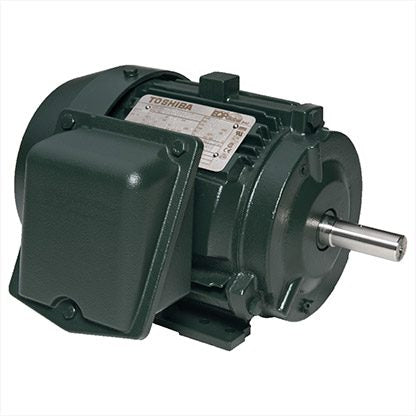

TOSHIBA Y224SDMV7FS-PL Electric Motor

Product Description

The TOSHIBA Y224SDMV7FS-PL is an electric motor suitable for various industrial applications. It is a three-phase motor operating at 230/400 volts with a speed of 1800 RPM. The motor has a Totally Enclosed Fan Cooled (TEFC) design and a frame size of 100L.

• Rated Speed: 1800 RPM
• Efficiency: 86.7%
• Power: 2.2 KW

Product Highlights

This motor is built to deliver reliable performance in demanding environments.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y224SDMV7FS-PL

Technical Specifications

• Horsepower: 3 HP
• Phases: 3
• Input Voltage: 230/400 V
• Full Load Amps: 9.2/5.3
• Enclosure: TEFC
• Frame: 100L
• Weight: 30 kg
• Input Frequency: 50 HZ
