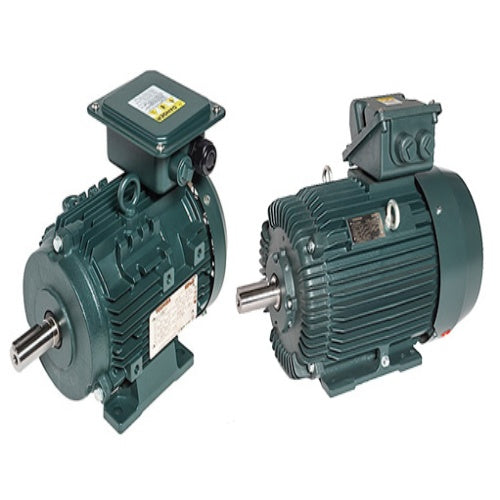

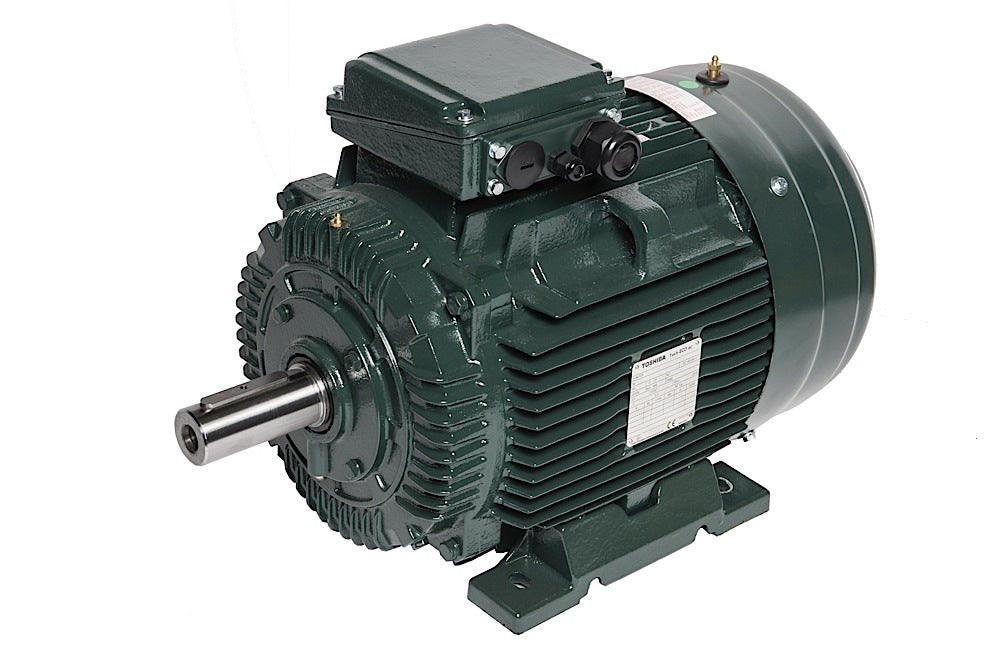

TOSHIBA Y222SDMV7GS-PL Electric Motor

Product Description

The TOSHIBA Y222SDMV7GS-PL is a three-phase electric motor ideal for various uses including pumps, fans, conveyors, compressors, centrifuges, and mixers. This motor features a Totally Enclosed Fan Cooled (TEFC) design that ensures reliability in severe conditions. It operates on dual frequencies of fifty and sixty Hertz and offers multiple voltage options. The motor also complies with IEC 60034 standards and provides IP55 protection for dust and water safety.

• Totally Enclosed Fan Cooled (TEFC) structure for durability
• Dual-frequency operation at 50/60 Hz
• Meets IEC 60034 efficiency standards

Product Highlights

This electric motor is built for demanding applications and efficiency in operation. It is suitable for both commercial and industrial settings.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y222SDMV7GS-PL

Technical Specifications

• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Voltage Phases: 3 Phase
• Motor Horsepower: 3 HP
• Motor Frequency: 50/60 Hz
• Motor Voltage: 230/400 Volt
• Motor RPM: 3600 RPM
• Motor Amperage (Full Load): 4.3 Amp
• Motor Frame Model: 90L
• Input Current: AC
• Phase: 3
• HP: 2.948
• KW: 2.2
• Efficiency: IE3
• Full Load Amps: 7.5/4.3
• Duty: S1
• Ambient Temperature: 40C
• Ingress Protection: IP55
• Frame Material: Aluminum
