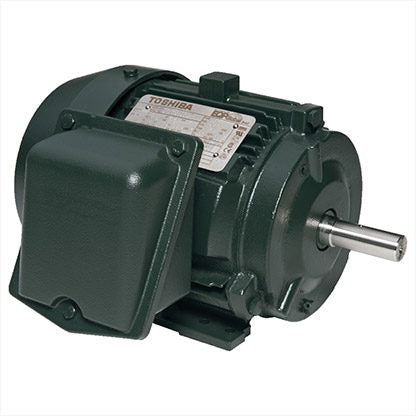

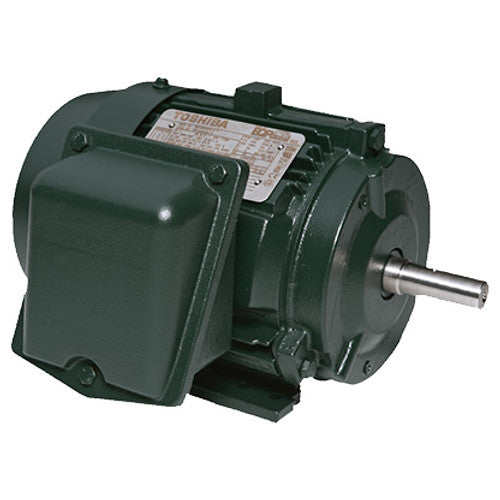

TOSHIBA Y154SDSR41A-P Electric Motor 1.5 HP TEFC

Product Description

The TOSHIBA Y154SDSR41A-P is a three-phase electric motor ideal for continuous applications. This motor belongs to the EQP Global SD series and features a totally enclosed fan-cooled (TEFC) design. It operates effectively at 230/460 VAC and 60 Hz, ensuring reliability in various environments.

• Speed: 1800 RPM
• Frame: 145T
• Power: 1.5 HP

Product Highlights

Designed for multiple uses such as compressors, fans, and blowers, the TOSHIBA Y154SDSR41A-P motor offers versatility in industrial applications.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y154SDSR41A-P

Technical Specifications

• Horsepower: 1.5 HP
• Speed: 1800 RPM
• Voltage: 230/460 VAC
• Frame Size: 145T
• Enclosure: TEFC
• Weight: 60 lbs
• Input Current: AC
• Frequency: 60 Hz
• Phase: 3 ph
• NEMA: Premium Efficiency
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Efficiency: 86.5
• Minimum Efficiency: 84
• Full Load Amperage: 2.4 A
• NEMA Design: B
• Locked Rotor: 285
• Full Load Torque: 4.5 ft-lb
• Break Down Torque: 425
• Insulation Class: Class F
• Duty: CONT
• Shaft Size: 7/8 in
• Rotation: CW/CCW
• Mounting Type: Footed
• Dimensions: 13.2 in L x 7.7 in H
• Material: Cast Iron
• Type: Continuous-Duty Type IKH
• Series: SD Series
• kW: 1.1
• Power Factor: 72.7
• Synchronous RPM: 1800
• Full Load RPM: 1750
• Code: M
