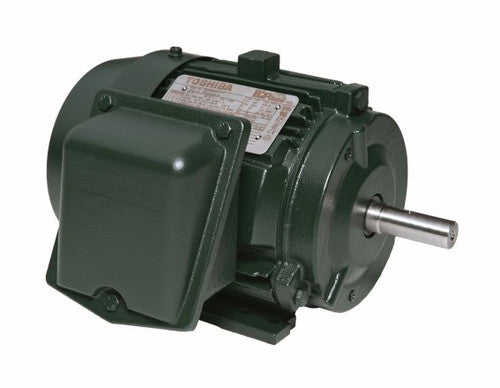

TOSHIBA Y154SDMV7GS-PL Electric Motor 2 HP

Product Description

The TOSHIBA Y154SDMV7GS-PL is a three-phase AC electric motor ideal for various applications. This motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring durability and efficiency. It operates on dual frequencies of fifty and sixty Hertz, making it flexible for different usage requirements.

• Totally Enclosed Fan Cooled (TEFC) design.
• Complies with IEC 60034 standards.
• Multi-mount capability for easy installation.

Product Highlights

This motor is suitable for pumps, fans, conveyors, compressors, centrifuges, and mixers. Its robust construction and high efficiency class make it an excellent choice for trade professionals.

Product Information

Standard Information

• Motor Type: AC Motor
• Rated Power: 2 HP

Technical Specifications

• Power: 1.5 KW
• Motor Voltage: 230/400 V
• Motor Frequency: 50/60 Hz
• Motor Speed: 1800 RPM
• Full Load Amperage: 5.9/3.4 Amp
• Number of Poles: 4
• Motor Enclosure Type: TEFC
• Frame Size: 90L
• Motor Phase: 3 Phase
• Efficiency Class: IE3
• Motor Standards: IEC
• Duty Cycle: S1
• Ambient Temperature: 40C
• Service Factor: 1.1
• Ingress Protection: IP55
• Frame Material: Aluminum
• Mounting Type: B5 Flange
• Weight: 55.00 lbs
• NEMA: Premium Efficiency
• Space Heaters: Optional
