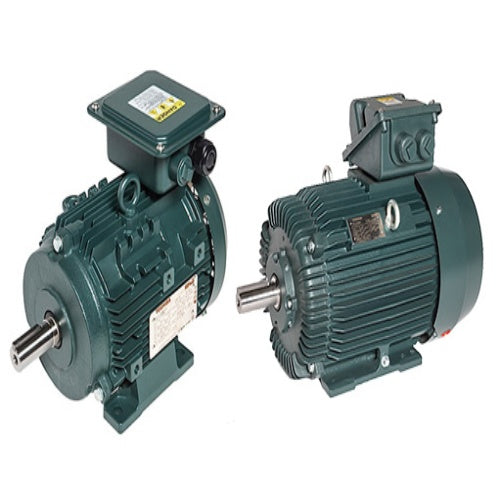

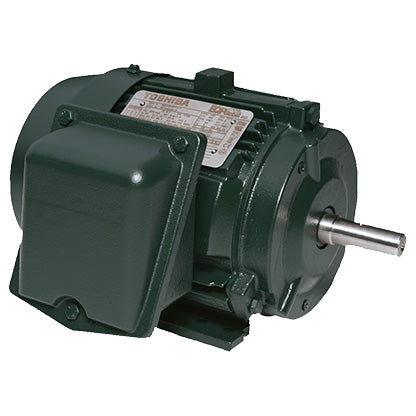

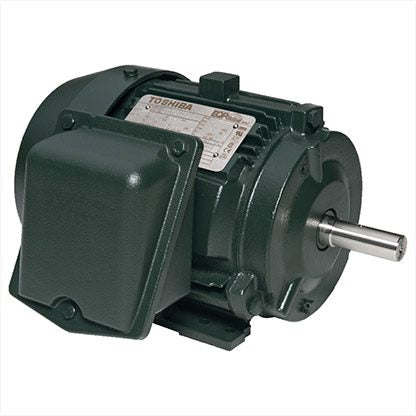

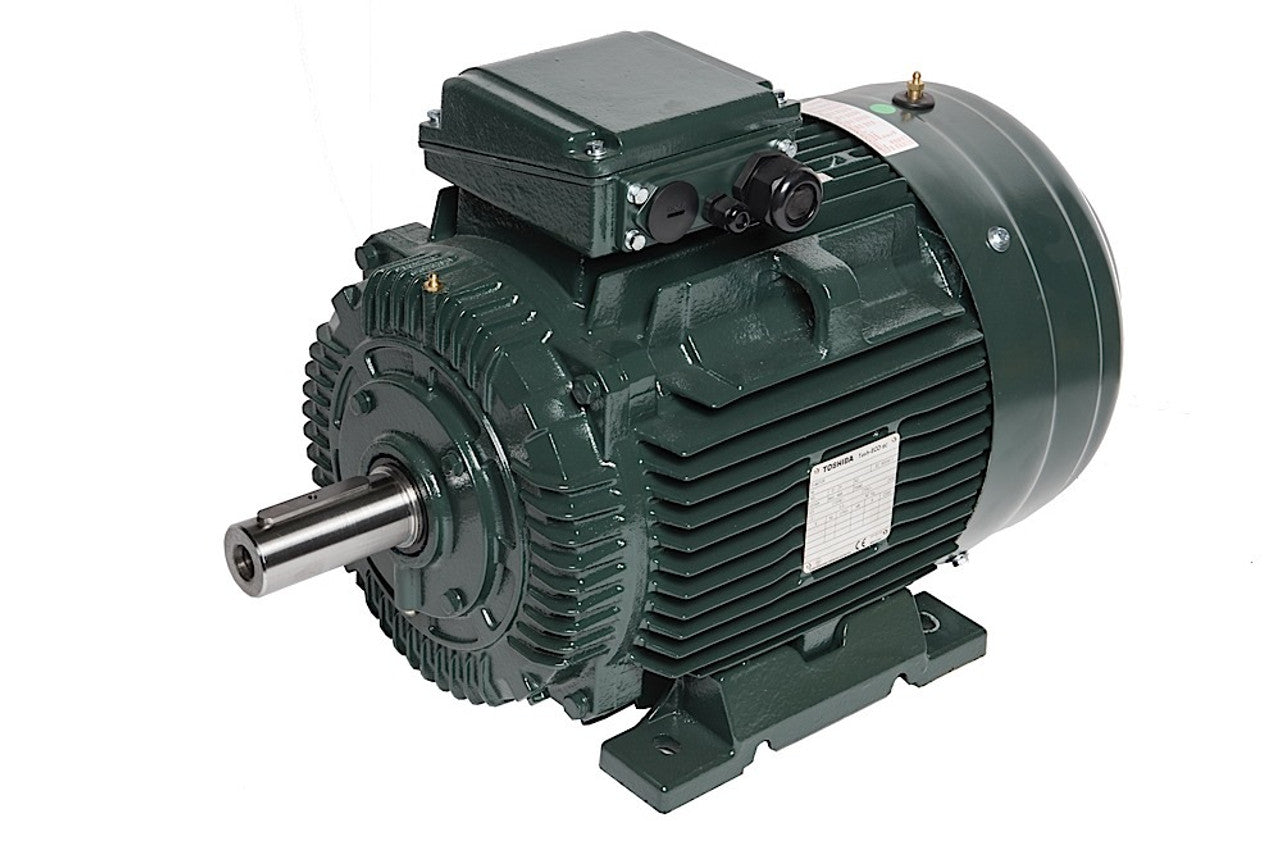

TOSHIBA Y154SDMV7FS-PL Electric Motor 2 HP

Product Description

The TOSHIBA Y154SDMV7FS-PL is a three-phase electric motor, ideal for various general-purpose applications. This electric motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, making it suitable for severe-duty environments. The Y154SDMV7FS-PL adheres to IEC 60034 standards, ensuring reliable operation. This motor operates efficiently at dual frequencies of fifty and sixty Hertz. The frame size is ninety L, and it supports reversible rotation. It can be used effectively with pumps, fans, conveyors, compressors, centrifuges, and mixers.

• TEFC enclosure for enhanced durability.
• Dual voltage capability at 230/400 Volt AC.
• Optimized for three-phase operation.

Product Highlights

This electric motor is designed for high performance in various applications while providing a robust solution for challenging environments.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y154SDMV7FS-PL

Technical Specifications

• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Voltage Phases: 3 Phase
• Horsepower: 2 HP
• Power: 1.5 KW
• Motor Frequency: 60 Hz
• Frequency: 50 Hz
• Motor Voltage: 400 Volt
• Voltage: 230/400
• Motor RPM: 1800 RPM
• Speed: 1800
• Motor Amperage (Full Load): 5.9 Amp
• Full Load Amperage: 5.9/3.4
• Frame Model: 90L
• Service Factor: 1.1
• Speed Type: SINGLE SPEED
• Reversible: REVERSIBLE
• Mounting Type: RIGID
• IEC Standard: IEC
• Mounting: B3 MOUNTING
• Number of Poles: 4 POLE
• Construction Material: CAST IRON MATERIAL
• Input Current: AC
• Efficiency Class: Premium Efficiency
• Weight: 21 kg
• Nominal Full Load Efficiency: 85.3
