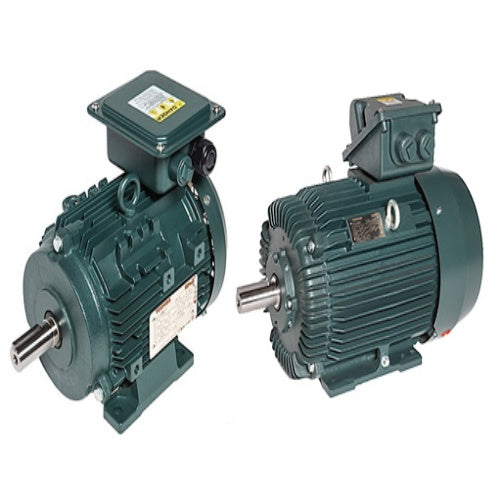

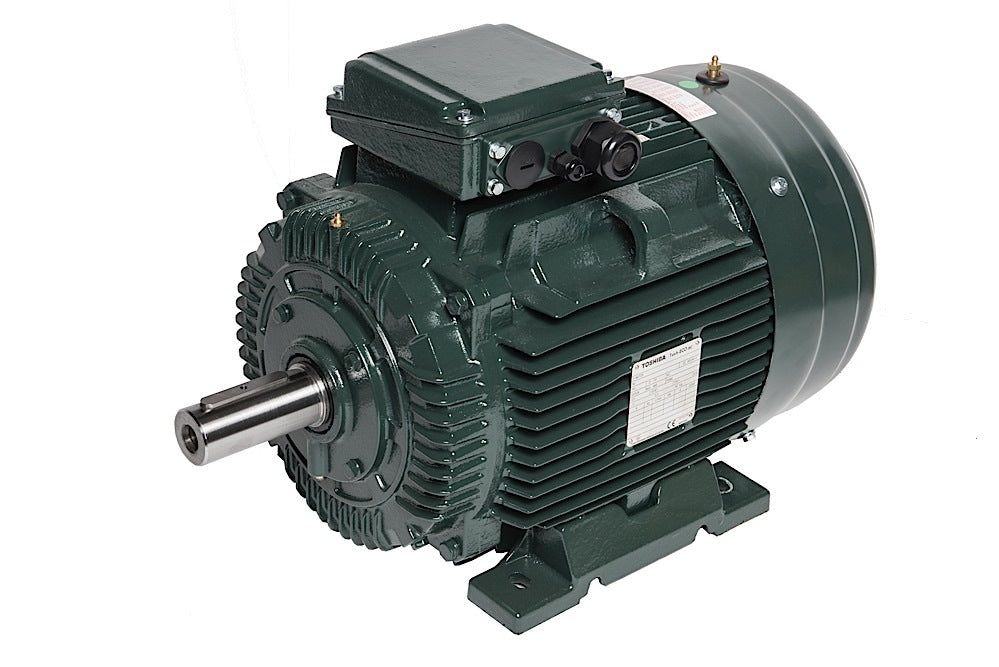

TOSHIBA Y152SDMV7FS-PL Electric Motor 2 HP (90L Frame) Replacement MPN

Product Description

The TOSHIBA Y152SDMV7FS-PL is a three-phase electric motor that complies with IEC 60034 standards. It features a totally enclosed and fan cooled (TEFC) design, making it suitable for various industrial applications. This motor operates on both fifty Hertz and sixty Hertz frequencies, providing flexibility in different environments.

• Three-phase electrical operation
• IP55 rated protection for durability
• Versatile for pumps, fans, and conveyors

Product Highlights

The motor supports applications including compressors, centrifuges, and mixers. Its dual-frequency capacity ensures it meets different operational requirements.

Product Information

Standard Information

• Manufacturer: Toshiba Motors
• Motor Type: AC Motor

Technical Specifications

• Speed (RPM): 3600
• Input Voltage: 230/400
• Frame: 90L
• Phases: 3
• Input Current: 5.2/3
• Nominal Full Load Efficiency: 84.2
• Weight: 20
• Horsepower: 2 HP
• Motor Frequency: 50/60 Hz
• Enclosure Type: Totally Enclosed Fan Cooled
• Motor Amperage (Full Load): 5.2 Amp
• Efficiency: IE3
• Duty: S1
• Ambient Temperature: 40C
• Service Factor: 1.1
• Ingress Protection: IP55
• Frame Material: Aluminum
• Space Heaters: Optional
• Pole: 2
• KW: 1.5
