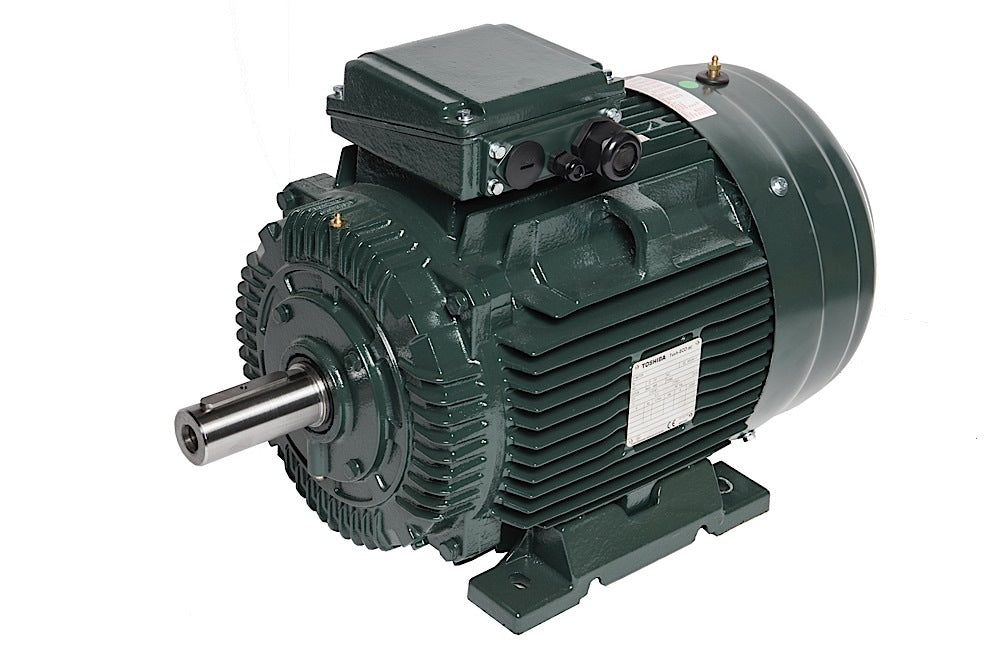

TOSHIBA Y114SDMV7FS-PL AC Motor 1.5 HP

Product Description

The TOSHIBA Y114SDMV7FS-PL is a three-phase AC motor suitable for various general-purpose applications. This motor operates on 230/400 volts and has a power rating of 1.5 horsepower at 1800 RPM. The Totally Enclosed Fan Cooled (TEFC) design ensures durability and protection against environmental factors.

• Totally Enclosed Fan Cooled (TEFC) enclosure
• Rated for 230/400V three-phase operation
• Efficiency class IE3

Product Highlights

Designed to meet IEC standards, this motor operates efficiently in a variety of conditions.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y114SDMV7FS-PL

Technical Specifications

• Motor Type: AC Motor
• Rated Power: 1.474 HP
• Power: 1.1 KW
• Motor Voltage: 230/400 V
• Input Voltage: AC
• Phase: 3 Phase
• Motor Frequency: 50/60 Hz
• Full Load Amps: 4.3/2.5 A
• RPM: 1800 RPM
• Poles: 4
• Efficiency Class: IE3
• Duty Cycle: S1
• Ambient Temperature: 40C
• Service Factor: 1.1
• Enclosure Rating: IP55
• Enclosure: TEFC
• Frame Material: Aluminum
• Frame Size: 90L
• Motor Standards: IEC
