TOSHIBA Y112SDMV7GS-P Electric Motor 1.5 HP

Product Description

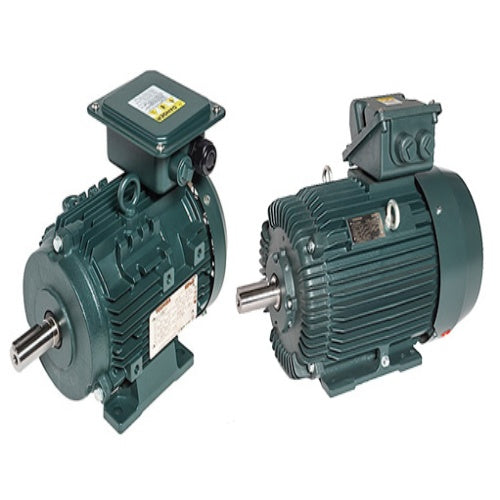

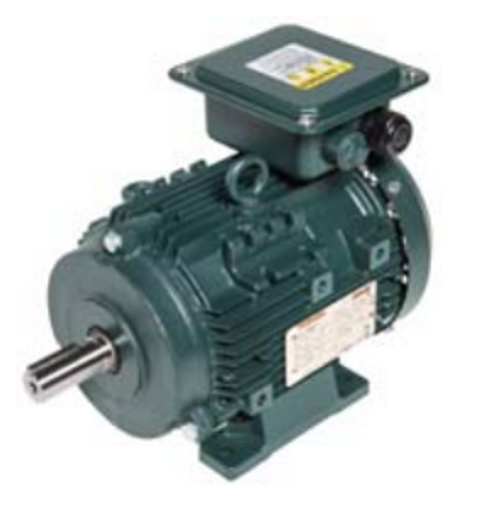

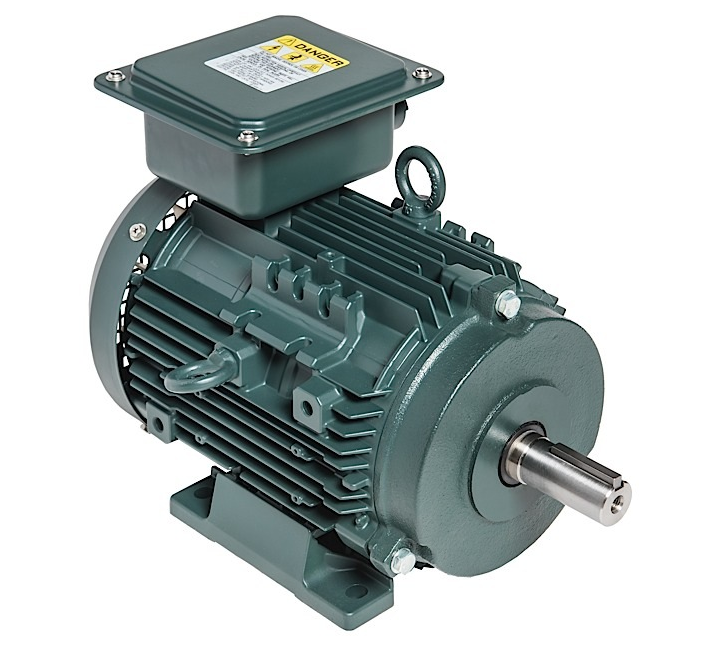

The TOSHIBA Y112SDMV7GS-P is a three-phase electric motor that complies with IEC 60034 standards. This motor is built with a totally enclosed fan-cooled (TEFC) design, making it ideal for severe-duty applications. It operates on dual frequencies of fifty and sixty Hertz and is rated IP55 for protection. This motor is suitable for various applications including pumps, fans, conveyors, compressors, centrifuges, and mixers.

• TEFC (Totally Enclosed Fan Cooled) enclosure
• Designed for dual-frequency operation (50/60 Hz)
• IP55 rated protection for durability

Product Highlights

The TOSHIBA Y112SDMV7GS-P motor is engineered for premium efficiency and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: Y112SDMV7GS-P

Technical Specifications

• Horsepower: 1.5 HP
• Power: 1.1 kW
• Motor Voltage: 230/400 Volt
• Input Voltage: AC
• Motor Voltage Phases: 3 Phase
• RPM: 3600
• Motor Frequency: 50 Hz
• Enclosure: TEFC
• Frame Type: 80M
• Efficiency: Premium Efficiency
• Protection: IP55
• Motor Amperage (Full Load): 3.8 Amp
