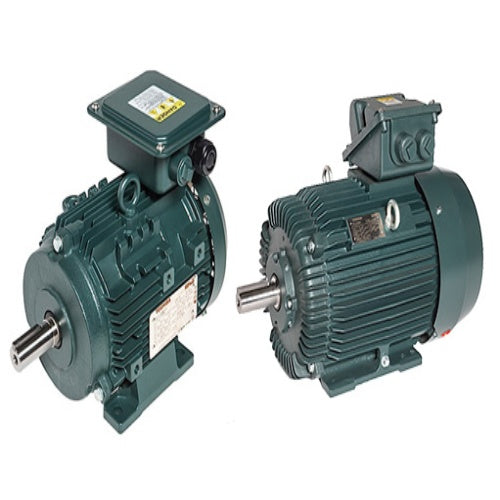

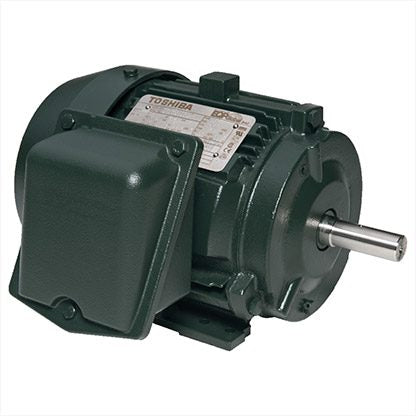

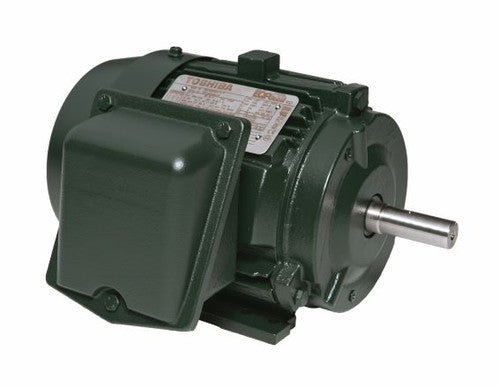

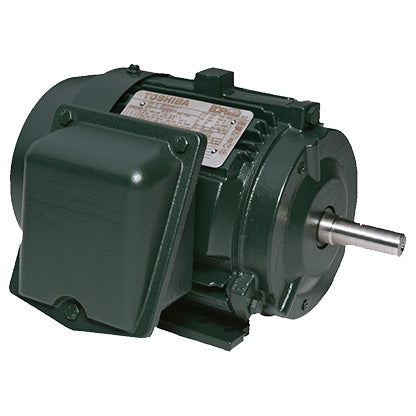

TOSHIBA X754SDMV7FS-P AC Motor

Product Description

The TOSHIBA X754SDMV7FS-P is a three-phase AC motor suitable for various industrial applications. It operates at 230/400V with a speed of one thousand eight hundred RPM. The motor features a Totally Enclosed Fan Cooled (TEFC) design and an eighty millimeter frame size. It meets IEC 60034 standards and provides IE3 efficiency, making it ideal for pumps, fans, conveyors, compressors, centrifuges, and mixers.

• Three-phase operation enhances performance.
• TEFC enclosure for reliable operation.
• High efficiency rating of IE3.

Product Highlights

The TOSHIBA X754SDMV7FS-P offers robust industrial capabilities with its reliable performance across multiple applications.

Product Information

Standard Information

• Brand: Toshiba
• MPN: X754SDMV7FS-P

Technical Specifications

• Horsepower: 1 HP
• Power: 0.75 KW
• RPM: 1800 RPM
• Input Voltage: 230/400V
• Frequency: 50/60 Hz
• Frame Size: 80M
• Enclosure Rating: TEFC
• Phase: 3 Phase
• Full Load Amperage: 3.3/1.9 Amp
• Efficiency: 82.5
• Weight: 51.00 lbs
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Voltage Phases: 3 Phase
• Motor Horsepower: 0.75 HP
• Motor Frequency: 60 Hz
• Motor Voltage: 400 Volt
• Motor Amperage (Full Load): 3.3 Amp
• Motor Frame Model: 80M
