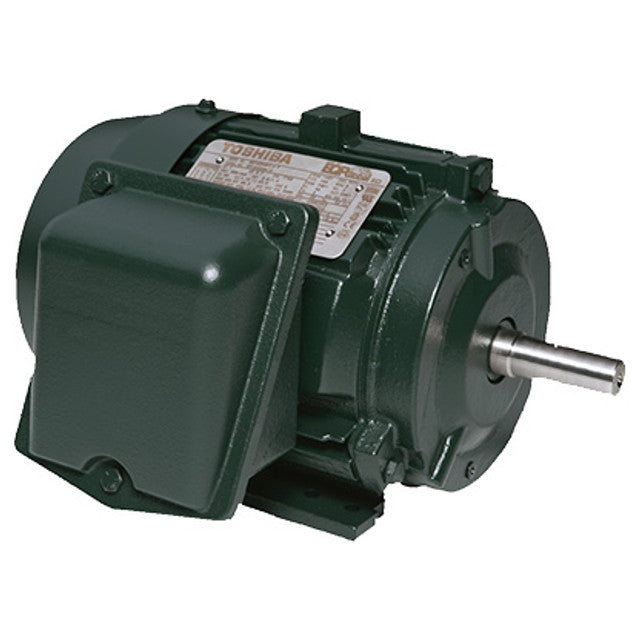

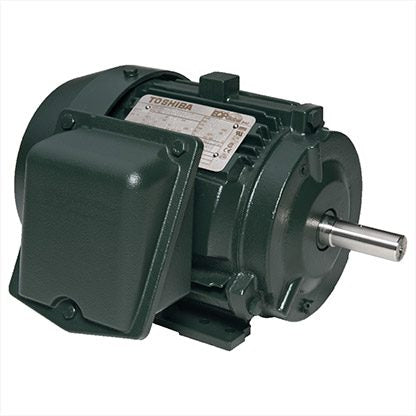

TOSHIBA 0754SDSR41A-P Electric Motor 75 HP

Product Description

The TOSHIBA 0754SDSR41A-P is a reliable three-phase electric motor designed for various industrial applications. This motor operates at voltage levels of two hundred thirty and four hundred sixty volts with a frequency of sixty hertz. It offers a robust horsepower rating of seventy-five HP and maintains a consistent speed of one thousand eight hundred RPM, making it suitable for continuous duty scenarios.

• Power: 75 HP
• Speed: 1800 RPM
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)

Product Highlights

The TOSHIBA electric motor is constructed with a 365T frame, ensuring durability and long service life. Its TEFC design protects internal components from dust and moisture, making it ideal for harsh environments. This motor is built for continuous operation and is efficient in performance.

Product Information

Standard Information

• Manufacturer: Toshiba Motors
• Model Number: 0754SDSR41A-P

Technical Specifications

• Horsepower: 75 HP
• Speed: 1800 RPM
• Voltage: 230/460
• Frequency: 60 Hz
• Frame: 365T
• Enclosure: TEFC
• Phase: 3 Phase
• NEMA Design: B
• Insulation Class: F
• Duty Cycle: Continuous
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Locked Rotor: 542.5
• Full Load Torque: 221 lb-ft
• Weight: 961 lbs
• Full Load Amperage: 85 Amp
• Efficiency: 95.4
• Minimum Efficiency: 94.5
• Power Factor: 87.4
• Full Load RPM: 1780
• Locked Rotor Code: G
• kW: 55.9
• Frame Construction: Cast Iron
