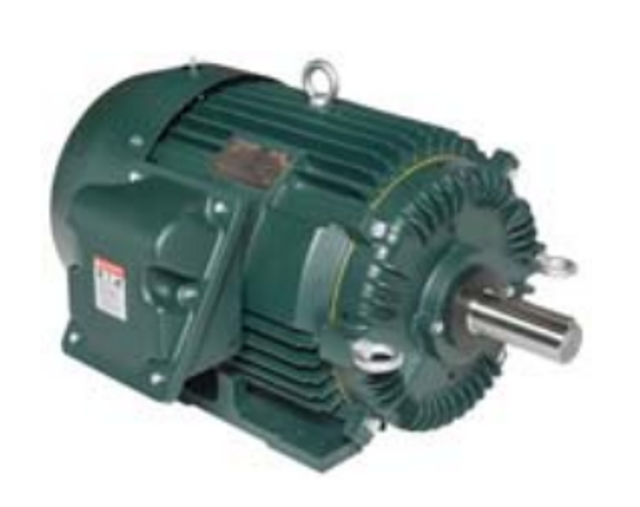

TOSHIBA 0604FAGR41A-P Electric Motor 60 HP

Product Description

The TOSHIBA 0604FAGR41A-P is a 3-phase electric motor with a horsepower rating of sixty HP. It operates at a speed of one thousand eight hundred RPM. This motor is built with a frame size of 364T and supports voltages of two hundred thirty and four hundred sixty Volts.

• Rated for sixty HP
• Operates at one thousand eight hundred RPM
• Equipped with a Totally Enclosed Air Over (TEAO) enclosure

Product Highlights

This electric motor is ideal for various industrial applications. Its robust design and premium efficiency make it suitable for demanding tasks.

Product Information

Standard Information

• Manufacturer: Toshiba Motors
• Motor Voltage: 230/460 Volt

Technical Specifications

• Horsepower: 60 HP
• Phase: 3 Phase
• RPM: 1800 RPM
• Frame Size: 364T
• Enclosure: TEAO
• Frequency: 60 Hz
• Full Load Amperage: 69 Amp
• Efficiency Rating: NEMA Premium
• Nominal Efficiency: 95
• NEMA Frame: B
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Locked Rotor Amperage: 435
• Full Load Torque (lb-ft): 178
• Drive End Bearing: 6314ZZC3
• Weight: 880 lbs
