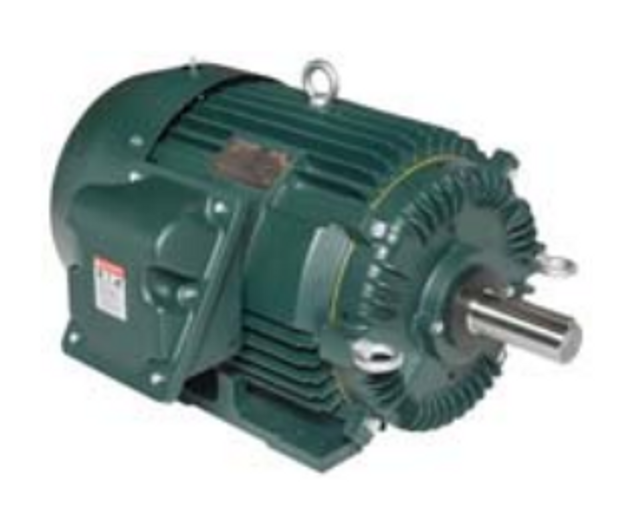

TOSHIBA 0504FAGR41A-P Electric Motor 3-Phase 50 HP

Product Description

The TOSHIBA 0504FAGR41A-P is a durable 3-phase electric motor ideal for cooling tower applications. This motor features a totally enclosed air over (TEAO) enclosure that protects it from environmental factors. With a voltage rating of 230/460 volts at 60 Hz, this motor ensures consistent operation. It has a 326T frame size and is designed to comply with NEMA MG1 Part 31 insulation standards.

• 3-phase electric motor operation.
• TEAO enclosure for protection.
• Compatible with adjustable speed drives.

Product Highlights

This motor is built for efficiency and reliability, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: TOSHIBA
• Features: Cooling tower application compatible

Technical Specifications

• MPN: 0504FAGR41A-P
• Motor Phase: 3 Phase
• Horsepower: 50 HP
• Power: 37 kW
• Motor Voltage: 230/460 Volt
• Motor Frequency: 60 Hz
• Motor RPM: 1800 RPM
• Frame Size: 326T
• Enclosure Type: TEAO
• Full Load Amperage: 60 Amp
• Locked Rotor Amperage: 362.5
• Full Load Torque (lb-ft): 148
• Locked Rotor Torque: 175
• Efficiency: NEMA Premium Efficiency
• Nominal Efficiency: 94.5
• Full Load Efficiency (%): 94.5
• 3/4 Load Efficiency (%): 93.8
• 1/2 Load Efficiency (%): 92.2
• Full Load Power Factor (%): 86.3
• 3/4 Load Power Factor (%): 83.4
• 1/2 Load Power Factor (%): 77.1
• NEMA Design: B
• Insulation Class: F
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Duty: CONT
• Weight: 715 lbs
• Drive End Bearing: 6312ZZC3
• Opposite Drive End Bearing: 6312ZZC3
