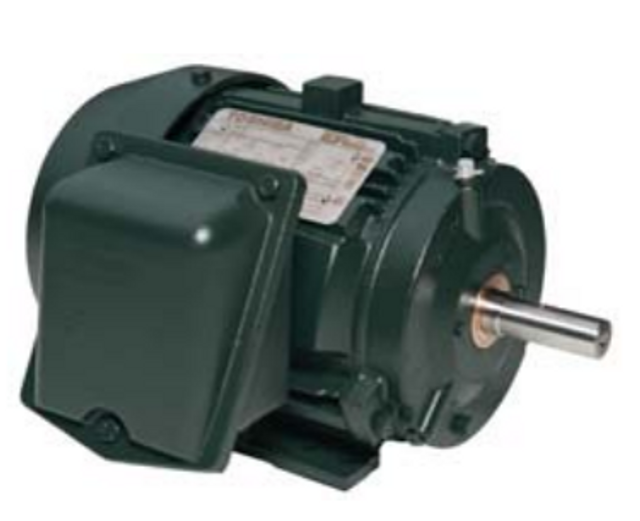

TOSHIBA 0404XDSB41A-P Electric Motor 40 HP 31.3 in L x 19 in H

Product Description

The TOSHIBA 0404XDSB41A-P is a three-phase electric motor designed for continuous duty. This motor is suitable for a variety of general-purpose applications such as compressors, fans, and blowers. It features a totally enclosed fan-cooled enclosure and a robust cast iron frame for durability.

• Horsepower: 40 HP
• Speed: 1800 RPM
• Enclosure: TEFC

Product Highlights

This motor operates at 460 VAC and 60 Hz, making it ideal for heavy-duty operations. With a service factor of 1.15, it is built to handle demanding tasks in various industrial settings.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0404XDSB41A-P

Technical Specifications

• Type: Continuous-Duty Type TKKH
• Series: 841
• Application Type: General Purpose AC Motors, Compressor Motors, Fan & Blower Motors
• Power: 29.8 kW
• Voltage Rating: 460 VAC
• Input Voltage: 460 V
• Amperage Rating: 48 A
• Input Current: AC
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Speed: 1800 rpm
• Enclosure Type: TEFC
• Frame: 324T
• Shaft Size: 2-1/8 in
• Rotation: Unidirectional
• Service Factor: 1.15
• Torque Rating: 118 ft-lb
• Dimensions: 31.3 in L x 19 in H
• Weight: 701 lbs
• NEMA Design: B
• Locked Rotor Amperage: 289
• Full Load Efficiency (%): 94.1
