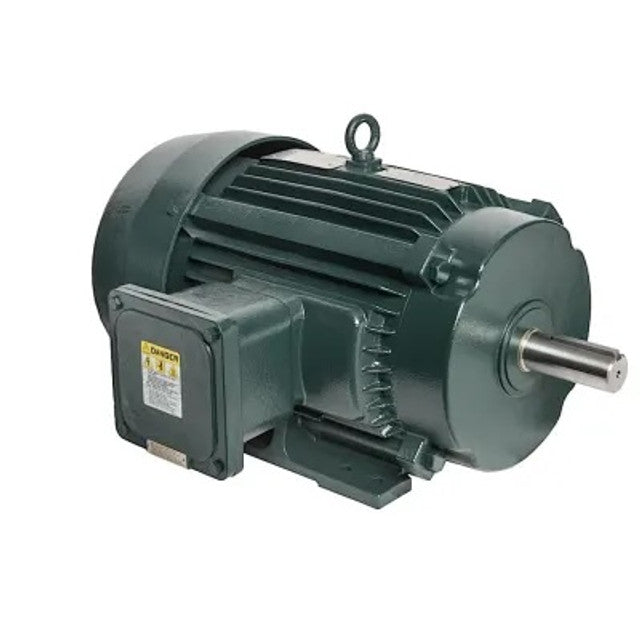

TOSHIBA 0254XPEA41A-P AC Motor 25 HP TEFC

Product Description

The TOSHIBA 0254XPEA41A-P is an AC motor built for continuous-duty tasks. This motor belongs to the XP Series and features a totally enclosed fan-cooled (TEFC) design, offering durability and reliability for demanding applications. With a speed of 1800 RPM, it operates at 230/460 VAC and is suitable for various uses including general-purpose, compressor, and fan applications.

• Continuous-duty type TKKH motor
• TEFC for enhanced protection
• Explosion proof design

Product Highlights

This motor is ideal for HVAC systems, industrial fans, and compressors. Its cast iron construction ensures longevity, while the ball bearings provide smooth operation.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0254XPEA41A-P

Technical Specifications

• Series: XP Series
• Type: Continuous-Duty Type TKKH
• Horsepower: 25 hp
• Input Voltage: 230/460 VAC
• Input Current: 62/31 A
• Frequency: 60 Hz
• Phase: 3
• Speed: 1800 rpm
• Enclosure Type: TEFC
• Frame Size: 284T
• Shaft Size: 1-7/8 in
• Torque Rating: 74.2 ft-lb
• Mounting Type: Footed
• Operating Temperature: 40 deg C
• Material: Cast Iron
• Dimensions: 29.3 in L x 17.2 in H
• Weight: 584 lbs
