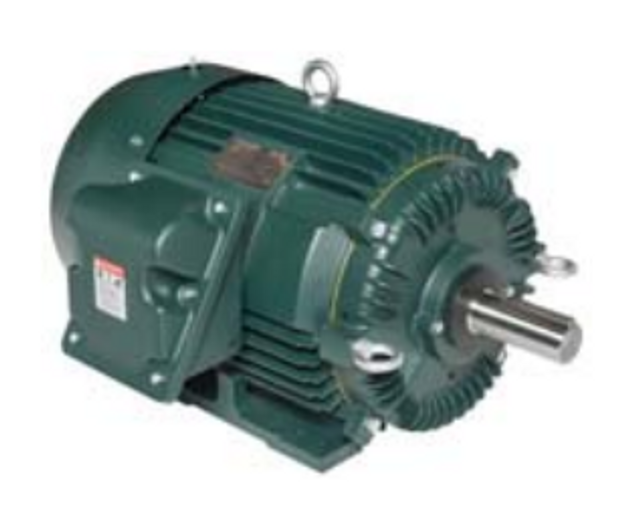

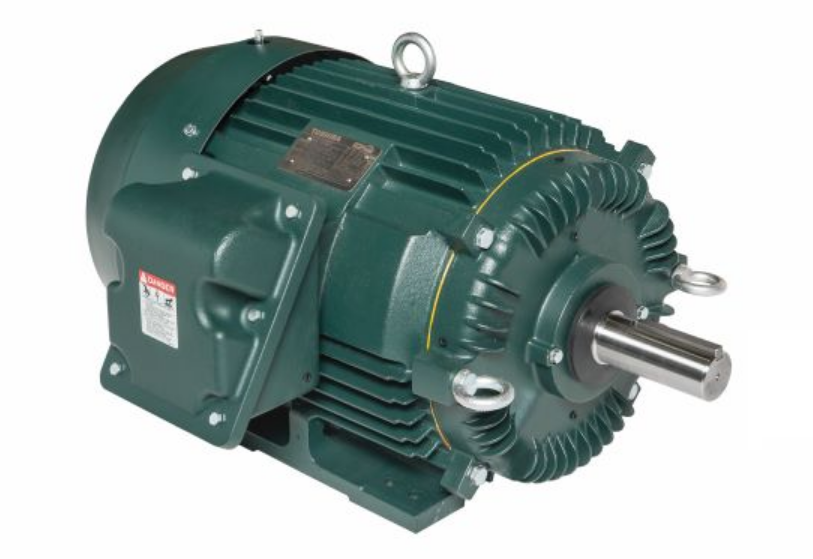

TOSHIBA 0254FAGR41A-P Electric Motor 25 HP

Product Description

The TOSHIBA 0254FAGR41A-P is a powerful electric motor ideal for cooling tower applications. This motor operates at both two hundred thirty and four hundred sixty volts and reaches an impressive speed of one thousand eight hundred RPM. Designed to handle various environmental conditions, this three-phase motor is built with a frame size of two hundred eighty-four T and features a TEAO enclosure to protect against humidity.

• Rated Horsepower: 25 HP
• Electrical Input: 230/460 Volts
• Speed Range: 1800 RPM

Product Highlights

This motor is reliable for HVAC systems and cooling towers, helping to maintain temperature control effectively.

Product Information

Standard Information

• Manufacturer: Toshiba Motors
• Model Number: 0254FAGR41A-P

Technical Specifications

• Horsepower: 25 HP
• Speed: 1800 RPM
• Frame Type: 284T
• Enclosure Type: TEAO
• Input Voltage: 230/460 Volt
• Phase: Three Phase
• Frequency: 60 Hz
• Weight: 492 lbs
• NEMA: Premium Efficiency
• Full Load Amperage: 61 Amp
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Nominal Efficiency: 93.6
• Minimum Efficiency: 92.4
• Full Load RPM: 1770
• Insulation Class: F
• Duty: CONT
• Locked Rotor: 190
• Full Load Torque: 74.2 lb-ft
• Break Down: 295
• Drive End: 6310ZZC3
• Opposite Drive End: 6310ZZC3
• Full Load: 84
• 3/4 Load: 80.5
• 1/2 Load: 73
• kW: 18.5
• Power Factor: 83.5
• NEMA Code: G
