TOSHIBA 0204XDSB41A-P Electric Motor 20 HP 460 VAC REPLACEMENT MPN

Product Description

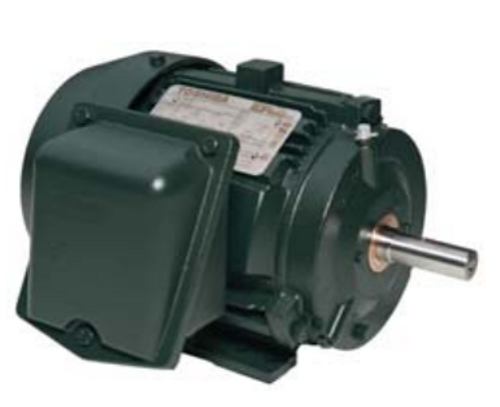

The TOSHIBA 0204XDSB41A-P is an AC electric motor meant for continuous operation. This motor features a totally enclosed, fan-cooled design for reliability in various environments. With a frame size of 256T, it is constructed to deliver consistent performance.

• Horsepower: 20 HP
• Voltage: 460 VAC
• Speed: 1800 RPM

Product Highlights

This motor is ideal for applications requiring robust power and durability. Its three-phase design and Class F insulation make it suitable for heavy-duty tasks.

Product Information

Standard Information

• Manufacturer: Toshiba Motors
• Motor Model: 0204XDSB41A-P

Technical Specifications

• Horsepower: 20 HP
• Voltage: 460 VAC
• Amperage Rating: 25.4 A
• Frequency: 60 Hz
• Phase: 3 ph
• Speed: 1800 RPM
• Enclosure Type: TEFC
• Frame Size: 256T
• Shaft Size: 1-5/8 inches
• Rotation: Unidirectional
• Service Factor: 1.15
• Torque Rating: 59.3 ft-lb
• Mounting Style: Foot
• Temperature Rating: 40 deg C
• Insulation Class: Class F
• Material: Cast Iron
• Duty Cycle: Continuous Duty
• NEMA Design: B
• Locked Rotor Amps: 260
• Full Load Torque: 59.3 ft-lb
• Break Down Torque: 280 ft-lb
• Full Load Amperage: 26 A
• RPM (Full Load): 1770
• Power Factor: 0.81
• Efficiency: Premium Efficiency
