TOSHIBA 0204FAGR41A-P Electric Motor 20 HP Cooling Tower Replacement MPN

Product Description

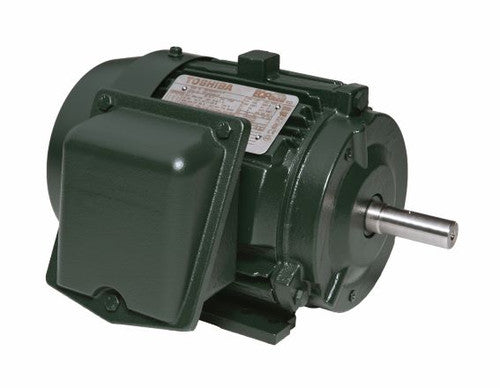

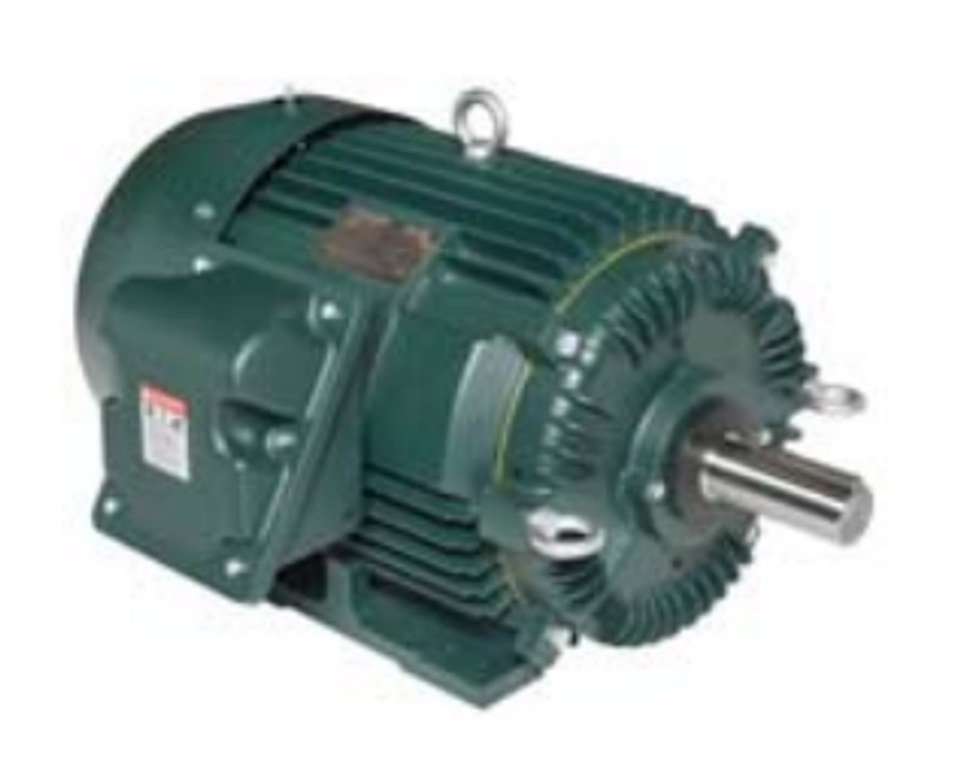

The TOSHIBA 0204FAGR41A-P is a three-phase electric motor designed for cooling tower applications. It operates at both 230 and 460 Volts with a frequency of sixty Hertz. This motor is rated for twenty horsepower and achieves a speed of 1800 RPM. It features a totally enclosed air over (TEAO) design, ensuring durability in humid conditions.

• Rated for twenty horsepower, ideal for cooling towers.
• Operates at 230/460 Volts with a frequency of sixty Hertz.
• IP56 ingress protection suitable for wet environments.

Product Highlights

This electric motor is designed for reliable operation and efficient performance in various cooling tower applications.

Product Information

Standard Information

• Manufacturer: Toshiba Motors
• Model Number: 0204FAGR41A-P

Technical Specifications

• Motor Horsepower: 20 HP
• Motor RPM: 1800 RPM
• Motor Voltage: 230/460V
• Motor Frequency: 60 Hz
• Enclosure Rating: TEAO
• Phase: 3 Phase
• Full Load Amperage: 50 Amp
• Locked Rotor Amperage: 145 Amp
• Weight: 355 lbs
