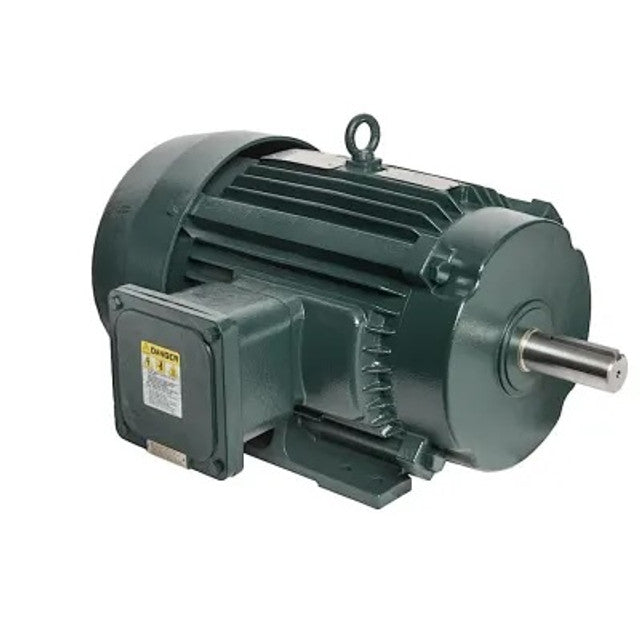

TOSHIBA 0154XPEA41A-P Electric Motor 15 HP 230/460 VAC

Product Description

The TOSHIBA 0154XPEA41A-P is an electric motor built for continuous duty. This three-phase motor has a horsepower of fifteen and operates at a speed of one thousand eight hundred RPM. It is compatible with both two hundred thirty and four hundred sixty VAC at sixty Hz. Designed with a 254T frame, it has a totally enclosed explosion-proof enclosure.

• Horsepower: 15 HP
• Speed: 1800 RPM
• Voltage: 230/460 VAC

Product Highlights

This motor is ideal for applications requiring reliable continuous operation. Its design ensures safety in hazardous conditions.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0154XPEA41A-P

Technical Specifications

• Horsepower: 15 HP
• Speed: 1800 RPM
• Voltage: 230/460 VAC
• Frequency: 60 Hz
• Phase: 3 ph
• Frame Size: 254T
• Enclosure Type: Totally Enclosed Explosion Proof
• Input Current: AC
• NEMA Design: NEMA Design B
• Insulation Class: Class F
• Duty Cycle: Continuous Duty
• Full Load Amperage: 38/19 A
• Frame Material: Cast Iron
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Locked Rotor: 113
• Full Load Torque: 44.5 ft-lb
• Nominal Efficiency: 92.4
• Minimum Efficiency: 91
• Power Factor: 81
• S.RPM: 1800
• FLRPM: 1770
• kW: 11.2
• Rotation: CW/CCW
• Bearing Type: Ball
• Dimensions: 25 in L x 15 in H
• Shaft Size: 1-5/8 in
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 60:1
