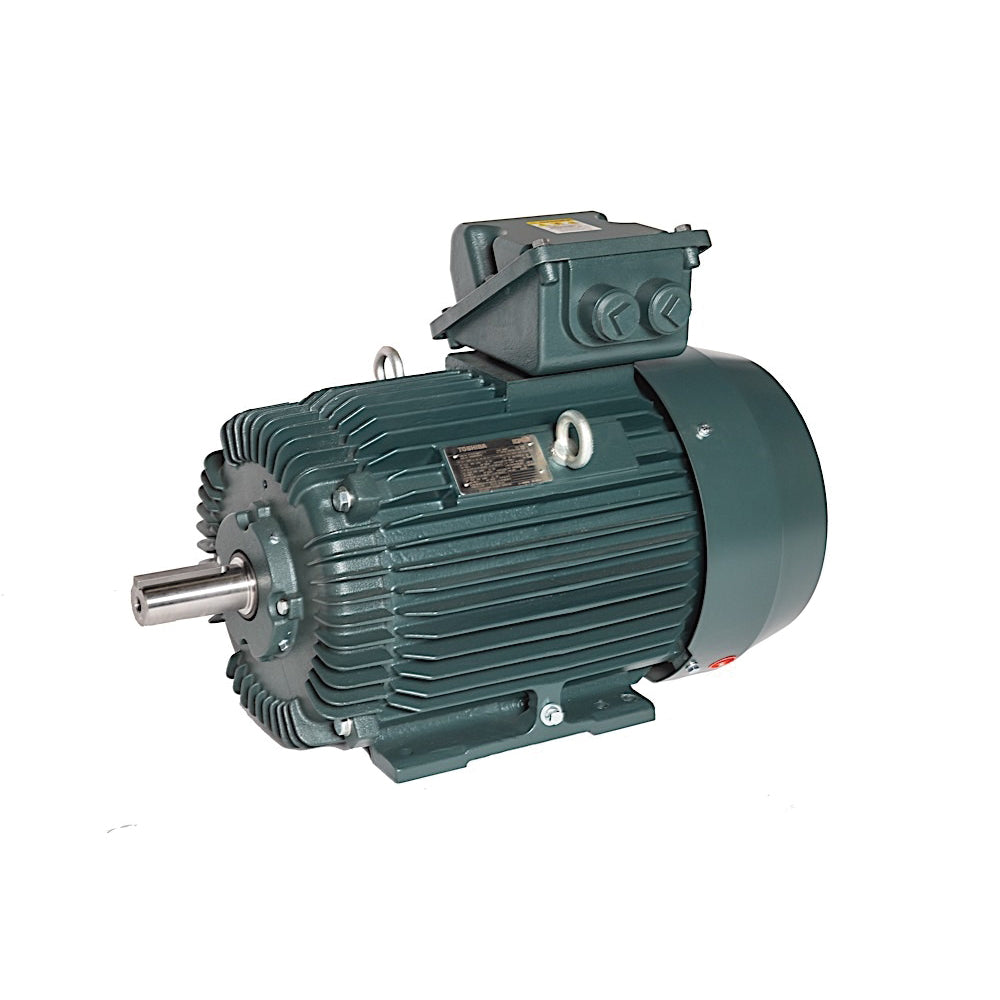

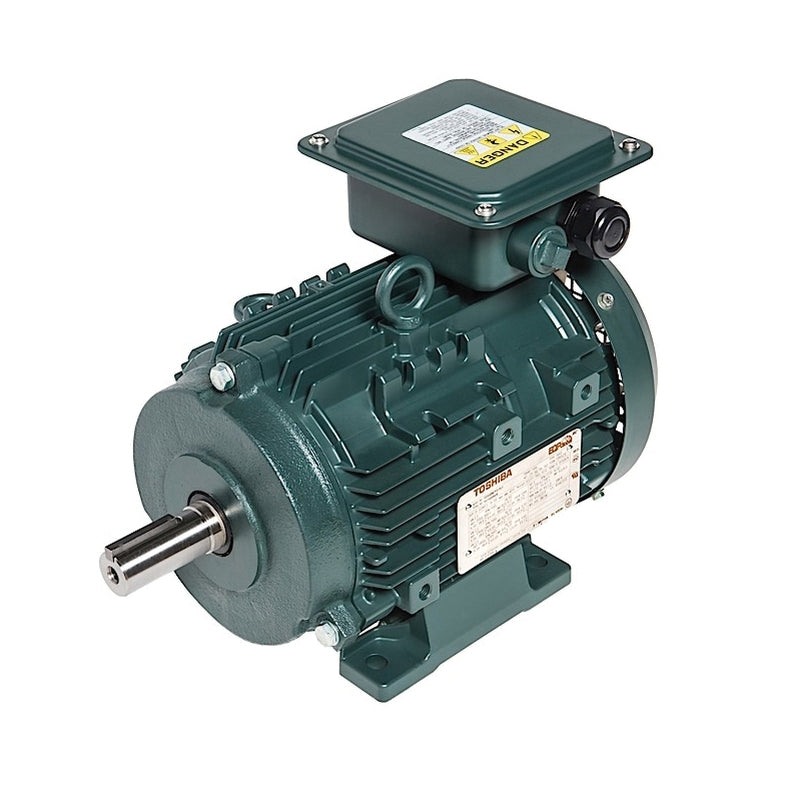

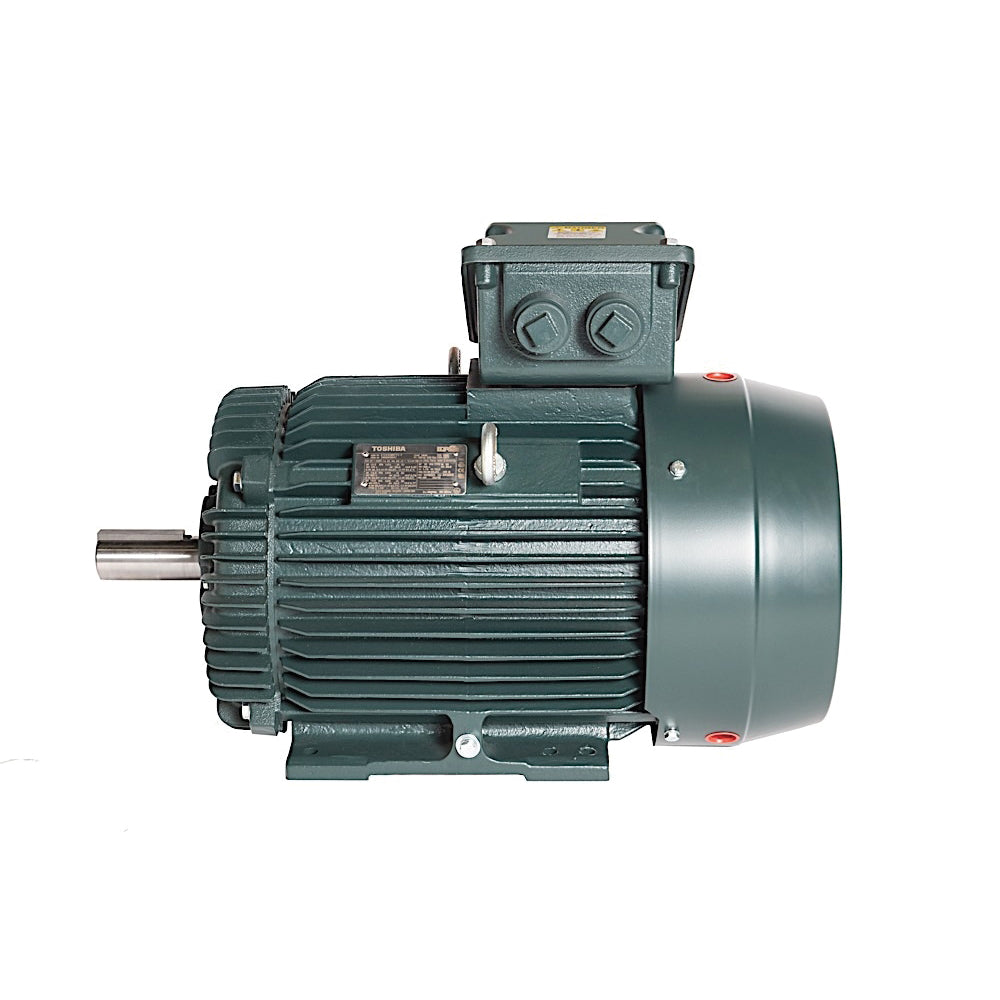

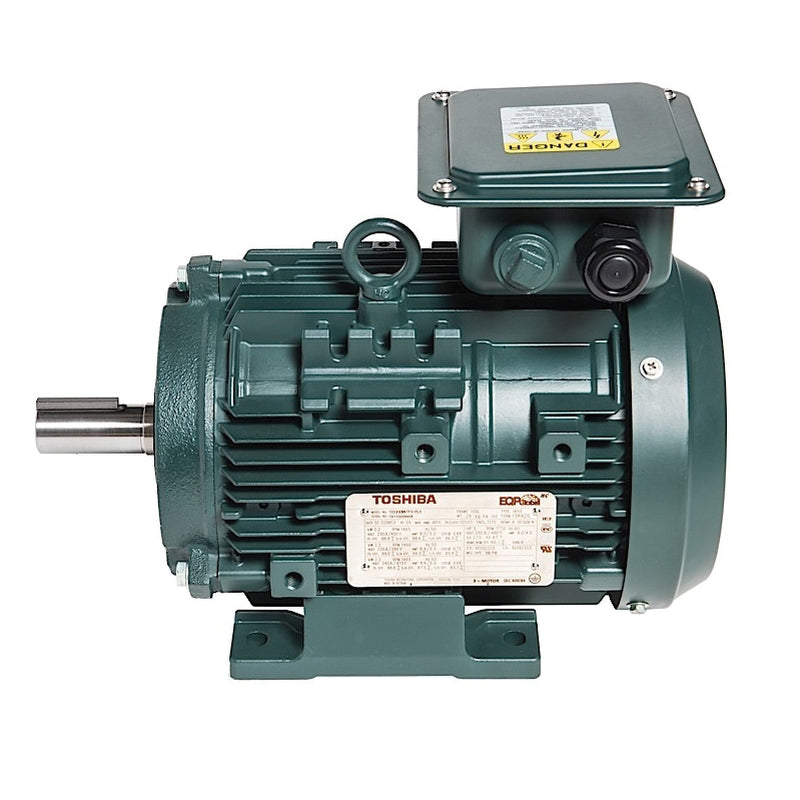

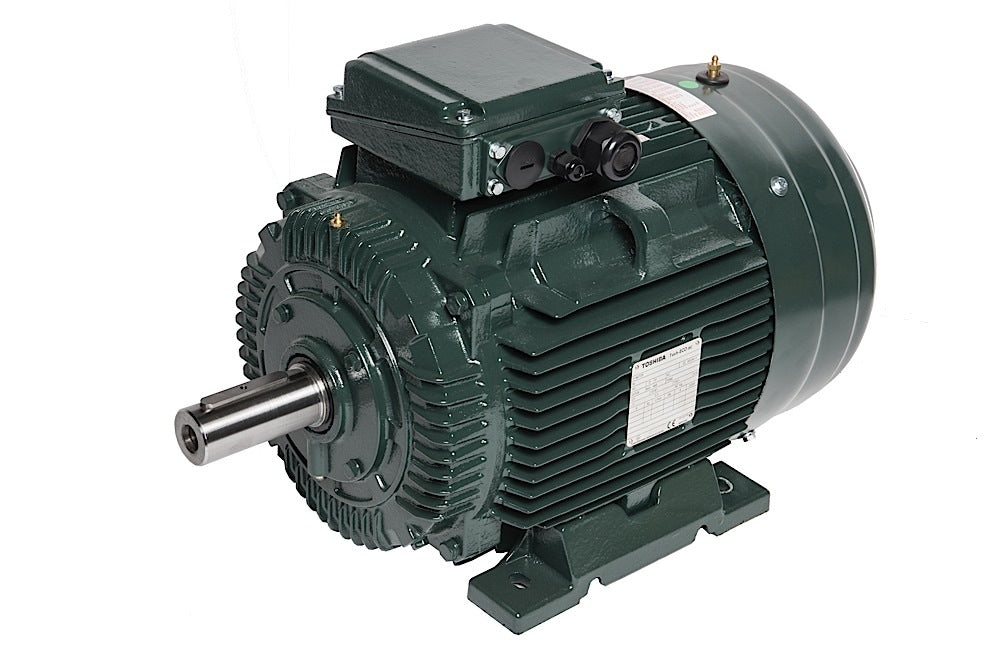

TOSHIBA 0154SDMW7FS-PL Electric Motor 15 kW 160L

Product Description

The TOSHIBA 0154SDMW7FS-PL is an AC electric motor designed for general-purpose applications. This motor features a TEFC enclosure, ensuring protection against dust and moisture. It operates effectively at a voltage of four hundred volts and is suitable for three-phase power at fifty or sixty hertz. With a speed of one thousand eight hundred RPM, this motor meets IEC standards, providing reliable performance in various industrial settings.

• TEFC enclosure for durability
• Rated power of fifteen kilowatts
• Designed for three-phase operation

Product Highlights

This motor delivers efficient operation and a long service life, making it ideal for a range of industrial applications.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0154SDMW7FS-PL

Technical Specifications

• Motor Type: AC Motor
• Rated Power: 15 kW
• Horsepower: 20 HP
• Input Voltage: 400 V
• Input Frequency: 50/60 Hz
• Phase: 3 Phase
• Full Load Amps: 29.8 Amp
• Speed: 1800 RPM
• Number of Poles: 4
• Enclosure: TEFC
• Frame Size: 160L
• Efficiency: IE3
• Service Factor: 1.1
• Ingress Protection: IP55
• Duty: S1
• Ambient Temperature: 40C
• Frame Material: Aluminum
• Motor Standards: IEC
• Weight: 119 kg
• Efficiency Group: IE3/NEMA Premium Efficiency
• Efficiency Rating: 92.1%
• Power Factor: 80.1%
• Insulation Class: Class F
• Mounting Type: Footed
• Rotation Type: CCW/CW
• Number of Speeds: 1
• Shaft Size: 42 mm Dia x 110 mm L
• Temperature Rating: 40 deg C
• Dimensions: 613 mm L x 440 mm H
• Duty Type: Severe
