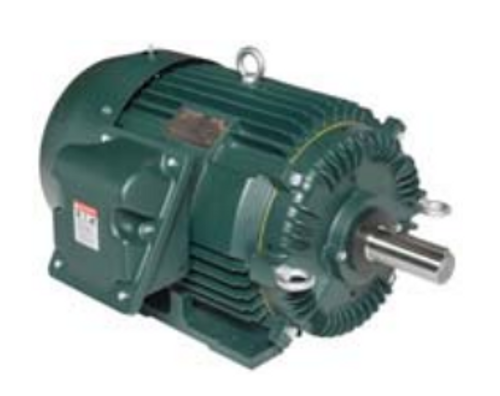

TOSHIBA 0154FAGR41A-P AC Motor 15 HP

Product Description

The TOSHIBA 0154FAGR41A-P is a three-phase AC motor. It is designed for continuous duty in various applications such as chiller and cooling tower motors, definite purpose AC motors, and fan and blower motors.

• Power: 15 HP
• Frame Size: 254T
• Mounting Type: Dual/Footed

Product Highlights

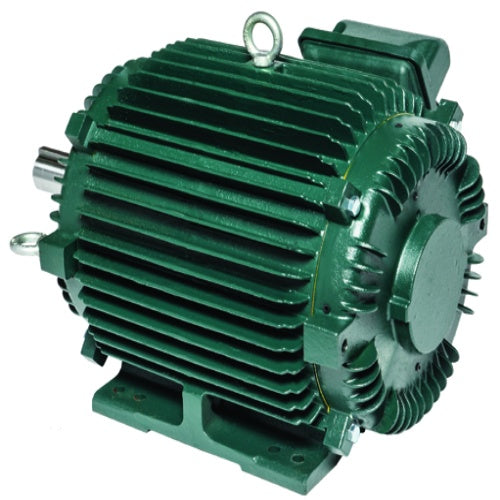

This motor features a totally enclosed air over enclosure and operates at 230/460 VAC and 60 Hz with a speed of 1800 RPM. It is suitable for heavy-duty applications.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0154FAGR41A-P

Technical Specifications

• Application Type: Chiller/Cooling Tower Motors, Definite Purpose AC Motors, Fan and Blower Motors
• Rated Power: 15 HP
• Voltage Rating: 230/460 VAC
• Input Current: AC
• Frequency Rating: 60 Hz
• Phase: 3
• Speed: 1800 RPM
• Enclosure Type: TEAO
• Frame Size: 254T
• Mounting Type: Dual/Footed
• Service Factor: 1.15
• Insulation Class: Class F
• Operating Temperature: -13 to 104 deg F
• Weight: 315 lbs
• Full Load Amperage: 19 A
• Efficiency Rating: NEMA Premium
• Nominal Efficiency: 92.4
• NEMA Standards: B
• Locked Rotor Code: G
• kW Rating: 11
• Power Factor: 81
• Full Load Speed: 1770 RPM
• Duty: CONT
• Locked Rotor Amperage: 113
• Full Load Torque: 44.5 ft-lb
• Locked Rotor Torque: 240
• Break Down Torque: 265
• Bearing Type: Ball
• Rotation: CW/CCW
• Shaft Size: 1-5/8 in Dia x 4 in L
• Special Features: Low Voltage Motors, Severe Duty Motors, Vector (Inverter) Duty Motors
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 60:1
• Dimensions: 22.1 in L x 12.9 in W x 12.9 in H
