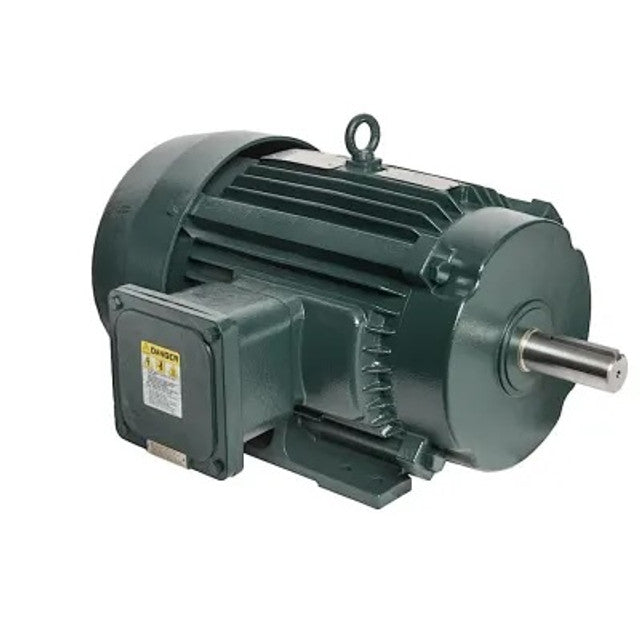

TOSHIBA 0152XPEA41A-P Electric Motor 15 HP 230/460V 60Hz Explosion Proof

Product Description

The TOSHIBA 0152XPEA41A-P is a three-phase electric motor ideal for continuous duty applications. It operates at 230/460 Volts and 60 Hz, generating a power output of 15 HP at a speed of 3600 RPM. This motor features a cast iron frame construction for durability and comes with Class F insulation, making it reliable for various industrial settings.

• Power: 15 HP
• Speed: 3600 RPM
• Enclosure Type: Totally Enclosed Explosion Proof (TEXP)

Product Highlights

This electric motor is suitable for use with inverters and is designed to withstand demanding environments.

Product Information

Standard Information

• Brand: Toshiba
• Manufacturer Part #: 0152XPEA41A-P

Technical Specifications

• Series: EQP Global-XP (Explosion Proof)
• Voltage: 230/460 V
• Frequency: 60 Hz
• Phase: 3 Phase
• RPM: 3600 RPM
• Frame Size: 254T
• Enclosure: TEXP
• Mounting Type: Foot Mount
• Motor NEMA Design: NEMA Design B
• Motor Insulation Class: Class F Insulation
• Duty Cycle: Continuous Duty
• Full Load Amperage: 36/18 Amp
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Efficiency: 91.2%
• Power Factor: 86.6%
• Weight: 366 lbs
• Locked Rotor Amperage: 116
• Full Load Torque (lb-ft): 22.3
• Locked Rotor Torque: 235
• Break Down Torque: 280
• Drive End Bearing: 6309ZZC3
• Opposite Drive End Bearing: 6309ZZC3
