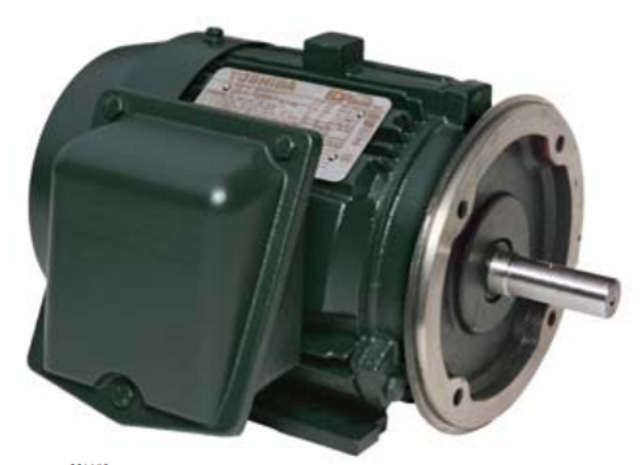

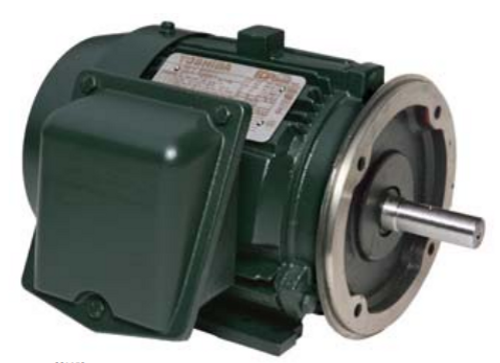

TOSHIBA 0152SDSR42A-P Electric Motor 15 HP TEFC

Product Description

The TOSHIBA 0152SDSR42A-P is a reliable electric motor ideal for continuous duty applications. This three-phase AC motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring effective cooling while maintaining durability. It operates with a voltage of 230/460 VAC and has a frequency of sixty Hertz. Designed to deliver a speed of three thousand six hundred RPM, this motor is robust with a horsepower rating of fifteen.

• Horsepower: 15 HP
• Speed: 3600 RPM
• Enclosure: TEFC

Product Highlights

This motor is suitable for various industrial and commercial uses, providing dependable performance with optimal efficiency.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0152SDSR42A-P

Technical Specifications

• Rated Power: 15 hp
• Motor Speed: 3600 rpm
• Input Voltage: 230/460 VAC
• Frequency: 60 Hz
• Phase: 3 ph
• Frame Type: 254TC
• Enclosure: TEFC
• Duty: CONT
• Service Factor: 1.15
• Operating Temperature: 40 C
• Rated Current: 36 A/18 A
• Efficiency: 91
• Power Factor: 86.6
• Shaft Size: 1-5/8 in Dia x 4 in L
• Torque: 22.3 ft-lb
• Dimensions: 25.1 in L x 12.7 in W x 12.9 in H
