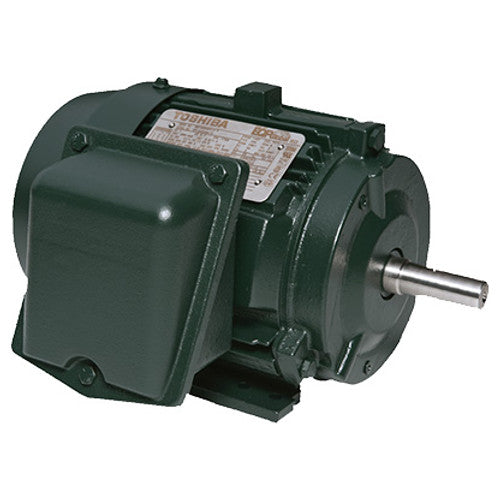

TOSHIBA 0152SDSR41A-P AC Motor 15 HP

Product Description

The TOSHIBA 0152SDSR41A-P is a 15 horsepower AC motor that works for continuous duty applications. It operates at 230 or 460 VAC and runs on a frequency of 60 Hz with a speed of 3600 RPM. This model has a totally enclosed fan-cooled (TEFC) design which provides durability and performance.

• Suitable for general-purpose applications including compressors, fans, and blowers.
• Features CW/CCW rotation for versatile installation.
• Utilizes ball bearings for efficient operation.

Product Highlights

This motor is designed for high efficiency and is well-suited for various industrial applications, providing reliable performance and maintenance ease.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0152SDSR41A-P

Technical Specifications

• Horsepower: 15 hp
• Voltage Rating: 230/460 VAC
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Speed: 3600 rpm
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Frame: 254T
• Shaft Size: 1-5/8 inches
• Rotation: CW/CCW
• Service Factor: 1.15
• Bearing Type: Ball
• Operating Temperature: 40 degrees Celsius
• Insulation Class: Class F
• Mounting Type: Footed
• Current Rating: 36/18 A
• Material: Cast Iron
• Application Type: General Purpose AC Motors, Compressor Motors, Fan & Blower Motors
• Torque Rating: 22.3 ft-lb
• Efficiency: 91
• NEMA Design: B
• Locked Rotor Code: G
• Duty Cycle: CONT
• Drive End Bearing: 6309ZZC3
• Opposite Drive End Bearing: 6309ZZC3
