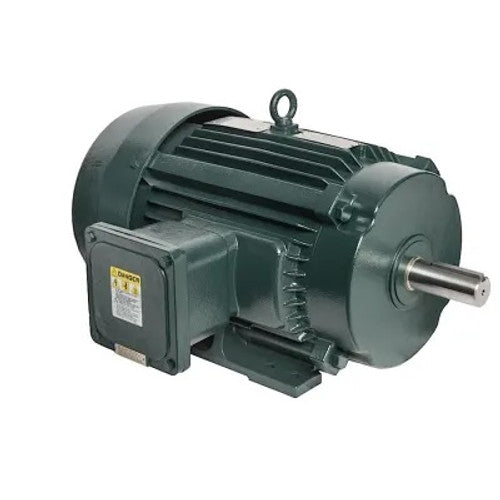

TOSHIBA 0104XPEA41A-P Electric Motor 10 HP 215T Frame

Product Description

The TOSHIBA 0104XPEA41A-P is a durable electric motor designed for various applications. This motor provides a reliable performance with a horsepower of ten HP and operates at a speed of one thousand eight hundred RPM. It runs on a voltage of two hundred thirty or four hundred sixty volts and features a 215T frame. The TOSHIBA motor is a three-phase AC motor and includes a totally enclosed explosion-proof enclosure, making it suitable for continuous duty.

• Power: 10 HP
• Speed: 1800 RPM
• Voltage: 230/460V

Product Highlights

This motor is ideal for industrial settings requiring reliable and efficient operation. It supports various applications in harsh environments due to its robust design.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0104XPEA41A-P

Technical Specifications

• Horsepower: 10 HP
• RPM: 1800
• Voltage: 230/460
• Frame Type: 215T
• Input Current: AC
• Phase: 3 Phase
• Enclosure: TEXP
• Frequency: 60 Hz
• Weight: 245 lbs
• NEMA Design: B
• kW: 7.5
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Insulation Class: F
• Duty: CONT
• Full Load Amperage: 26/13
• Full Load Speed: 1760
• Full Load Efficiency (%): 91.8
• 3/4 Load Efficiency (%): 91.1
• 1/2 Load Efficiency (%): 89.1
• Full Load Power Factor (%): 80.2
• 3/4 Load Power Factor (%): 67.5
• 1/2 Load Power Factor (%): 76.4
• Locked Rotor Torque: 260
• Break Down Torque: 330
• Locked Rotor Current: 81
• Drive End Bearing: 6308ZZC3
• Opposite Drive End Bearing: 6308ZZC3
• NEMA: Premium Efficiency
