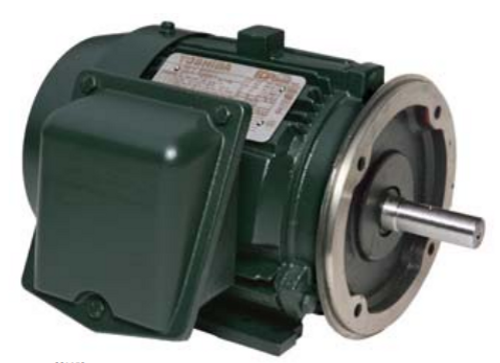

TOSHIBA 0104SDSR42A-P AC Motor

Brand: TOSHIBA
SKU: 0104SDSR42A-P
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$1,191.45
$1,191.45
LTL Delivery

This product weighs 200 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The TOSHIBA 0104SDSR42A-P is an AC motor designed for various applications including compressors, fans, and blowers. With its continuous-duty type IKH design, it is reliable for demanding environments.

  • Continuous-duty type IKH motor
  • Totally Enclosed Fan Cooled (TEFC) enclosure
  • C-Face Footed mounting

Product Highlights

This motor operates at 230/460 VAC and has a speed of 1800 RPM, making it suitable for general-purpose use. It is constructed from cast iron and features Class F insulation for durability.

Product Information

Standard Information

  • Brand: TOSHIBA
  • MPN: 0104SDSR42A-P

Technical Specifications

  • Series: SD Series
  • Application Type: General Purpose AC Motors, Compressor Motors, Fan & Blower Motors
  • Horsepower: 10 hp
  • Voltage Rating: 230/460 VAC
  • Input Voltage: 230/460
  • Output Current: 26/13 A
  • Frequency Rating: 60 Hz
  • Phase: 3
  • Speed: 1800 rpm
  • Enclosure Type: TEFC
  • Frame Size: 215TC
  • Shaft Size: 1-3/8 in
  • Rotation: CW/CCW
  • Service Factor: 1.15
  • Bearing Type: Ball
  • Torque Rating: 29.8 ft-lb
  • Mounting Type: C-Face Footed
  • Operating Temperature: 40 deg C
  • Insulation Class: Class F
  • Material: Cast Iron
  • Dimensions: 19.4 in L x 13.2 in H
  • NEMA Standards: B
  • Efficiency: 91.7
  • Locked Rotor: 260
  • Full Load: 80.2
  • 3/4 Load: 67.5
  • 1/2 Load: 76.4
