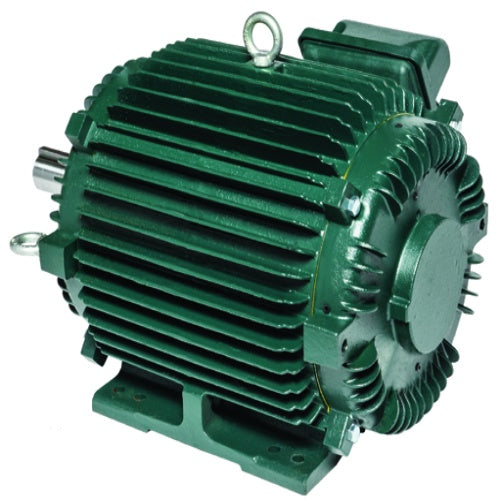

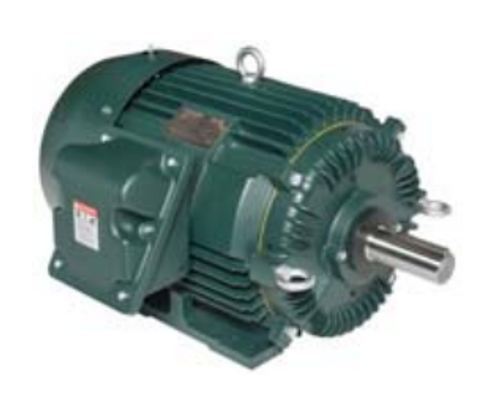

TOSHIBA 0104FAGR41A-P Electric Motor 10 HP

Product Description

The TOSHIBA 0104FAGR41A-P is a reliable 3-phase electric motor tailored for cooling tower applications. With a horsepower of 10 HP and a speed of 1800 RPM, this motor efficiently operates at a voltage of 230/460. Its Totally Enclosed Air Over (TEAO) enclosure provides robust protection, and with an IP56 rating, it is suitable for humid environments.

• Designed for adjustable speed drives
• Corrosion-resistant epoxy paint for durability
• Can be mounted horizontally or vertically

Product Highlights

Ideal for wet conditions, the electric motor meets various operational needs while ensuring high efficiency.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0104FAGR41A-P

Technical Specifications

• Motor Phase: 3 Phase
• Horsepower: 10 HP
• Frame Size: 215T
• Frequency: 60 Hz
• Voltage: 230/460 Volt
• Speed: 1800 RPM
• Full Load Amperage: 26 Amp
• Enclosure Type: TEAO
• Weight: 203 lbs
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Efficiency: 91.7
• Minimum Efficiency: 90.2
• NEMA Design: B
• Code: H
• kW: 7.5
• Power Factor: 80.2
• Full Load Speed: 1760 RPM
• Insulation Class: F
• Duty: CONT
• Locked Rotor Amperage: 81
• Full Load Torque: 29.8 lb-ft
• Locked Rotor Torque: 260
• Breakdown Torque: 330
• Drive End Bearing: 6308ZZC3
• Opposite Drive End Bearing: 6308ZZC3
• Full Load Efficiency: 91.8
• 3/4 Load Efficiency: 91.1
• 1/2 Load Efficiency: 89.1
• Full Load Power Factor: 81.7
• 3/4 Load Power Factor: 76.4
• 1/2 Load Power Factor: 67.5
