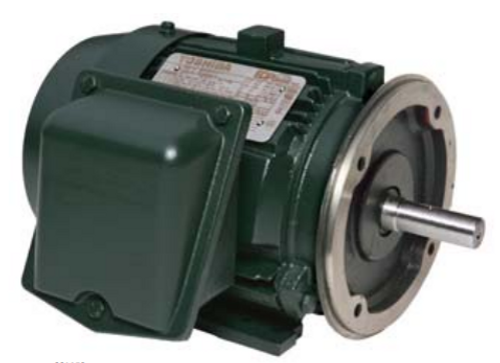

TOSHIBA 0102SDSR42A-P AC Motor

Product Description

The TOSHIBA 0102SDSR42A-P is a three-phase AC motor designed for continuous-duty applications. It is suitable for use in compressors, fans, and blowers. This motor operates at 230/460 VAC and 60 Hz, achieving a speed of 3600 RPM. The motor features a totally enclosed fan cooled (TEFC) enclosure and C-Face Foot mounting style.

• Continuous-duty AC motor
• TEFC enclosure for durability
• Ideal for compressors and fans

Product Highlights

This motor is built for reliability and efficiency in various applications, including HVAC systems and industrial machinery.

Product Information

Standard Information

• Manufacturer: TOSHIBA
• MPN: 0102SDSR42A-P

Technical Specifications

• Type: Continuous-Duty Type IKH
• Series: SD Series
• Horsepower: 10 hp
• Voltage Rating: 230/460 VAC
• Amperage Rating: 23.6/11.8 A
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Speed: 3600 rpm
• Enclosure Type: TEFC
• Frame Size: 215TC
• Shaft Size: 1-3/8 in
• Rotation: Unidirectional
• Service Factor: 1.15
• Bearing Type: Ball
• Torque Rating: 15 ft-lb
• Mounting Type: C-Face Foot
• Operating Temperature: 40 deg C
• Insulation Class: Class F
• Material: Cast Iron
• Speed Range - Constant Torque: 20:1
• Speed Range - Variable Torque: 60:1
• Dimensions: 19.4 in L x 13.2 in H
• Efficiency: 90.2
• NEMA Design: B
• Code: H
• kW: 7.5
• Power Factor: 88.2
• Full Load Speed: 3510 rpm
• Duty Cycle: CONT
• Locked Rotor Amperage: 80
• Locked Rotor Torque: 265
• Break Down Torque: 355
• Drive End Bearing: 6308ZZC3
• Opposite Drive End Bearing: 6308ZZC3
• Full Load Efficiency (%): 90.2
• 3/4 Load Efficiency (%): 91.1
• 1/2 Load Efficiency (%): 89.2
• Full Load Power Factor (%): 88.2
• 3/4 Load Power Factor (%): 81.2
• 1/2 Load Power Factor (%): 87.2
• Frame Type: 215TC
• Input Voltage: AC
• Hertz: 60 HZ
• Premium Efficiency: Premium Efficiency
