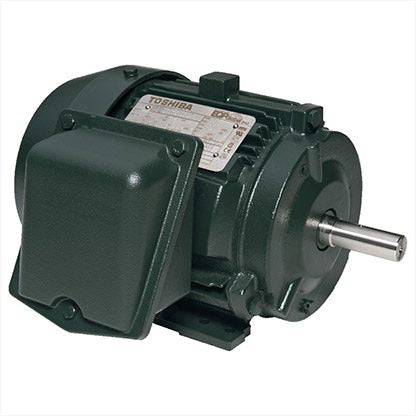

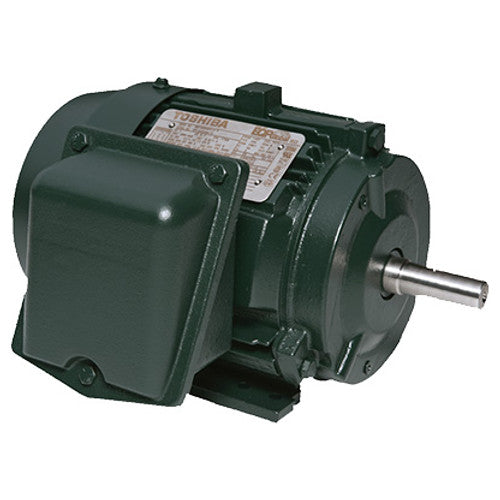

TOSHIBA 0102SDSR41A-P Electric Motor 10 HP (215T Frame)

Product Description

The TOSHIBA 0102SDSR41A-P is a three-phase electric motor designed for continuous-duty applications. This motor has a Totally Enclosed Fan Cooled (TEFC) enclosure and operates effectively at 230/460 VAC and 60 Hz.

• Horsepower: 10 HP
• Speed: 3600 RPM
• Frame Size: 215T

Product Highlights

This motor is built suitable for a range of applications including compressors, fans, and blowers. It features a robust construction ensuring reliability in various operational settings.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0102SDSR41A-P

Technical Specifications

• Horsepower: 10 HP
• Voltage: 230/460 VAC
• Frequency: 60 Hz
• Phase: 3
• Speed: 3600 RPM
• Frame Size: 215T
• Enclosure: TEFC
• Service Factor: 1.15
• Insulation Class: F
• Ambient Temperature: 40 C
• Efficiency: 90.2%
• Full Load Power Factor: 88.2%
• Locked Rotor Amperage: 80
• Full Load Torque: 15 ft-lb
• Locked Rotor Torque: 265
• Break Down Torque: 355
• Duty: CONT
• NEMA Design: B
• Code: H
• KW: 7.5
• Mounting Type: Foot
• Bearing Type Drive End: 6308ZZC3
• Bearing Type Opposite Drive End: 6308ZZC3
• Full Load Efficiency (%): 90.2
• 3/4 Load Efficiency (%): 91.1
• 1/2 Load Efficiency (%): 89.2
• 3/4 Load Power Factor (%): 81.2
• 1/2 Load Power Factor (%): 87.2
• Amperage Rating: 23.6/11.8 A
• Shaft Size: 1-3/8 in
• Rotation: Unidirectional
• Material: Cast Iron
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 60:1
• Dimensions: 19.4 in L x 13.2 in H
• Weight: 183 lbs
