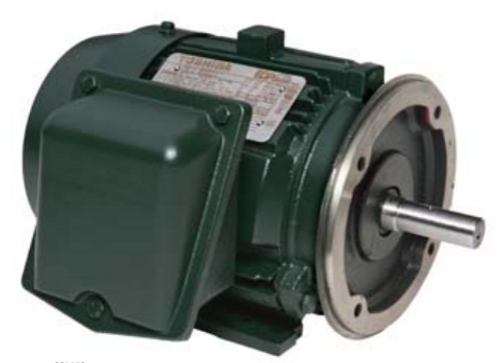

TOSHIBA 0054SDSR42A-P Electric Motor 5 HP 230/460 VAC

Product Description

The TOSHIBA 0054SDSR42A-P is a three-phase electric motor suitable for continuous duty applications. With a TEFC enclosure, this motor ensures reliability and durability in various settings. It operates at 230/460 VAC with a frequency of sixty Hertz, providing five horsepower at a speed of one thousand eight hundred RPM. This electric motor finds its application in general-purpose tasks including compressors, fans, and blowers.

• Enclosure Type: TEFC
• Speed: 1800 RPM
• Frame Type: 184TC

Product Highlights

This electric motor offers robust construction with a cast iron frame and ball bearings for smooth operation. It has a service factor rating of 1.15 and is designed to meet various industrial needs.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0054SDSR42A-P

Technical Specifications

• Horsepower: 5 hp
• Voltage: 230/460 VAC
• Frequency: 60 Hz
• Phase: 3 ph
• Frame Type: 184TC
• Speed: 1800 RPM
• Service Factor: 1.15
• Efficiency: 89.9%
• Torque Rating: 15 ft-lb
• Weight: 116 lbs
