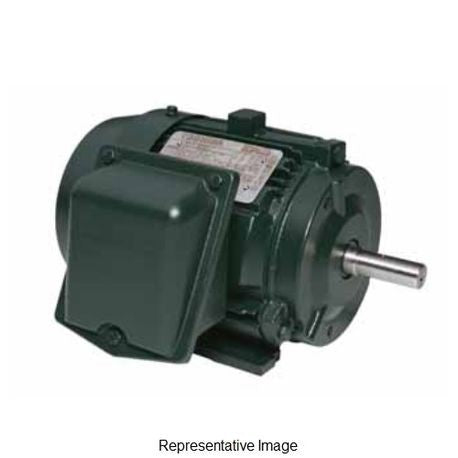

Toshiba 0054SDSR41A-P General Purpose Motor - 5 hp 1800 rpm 230/460 V

Product Description

The Toshiba 0054SDSR41A-P is a general purpose motor with five horsepower and operates at one thousand seven hundred twenty-five revolutions per minute. Designed for three-phase applications, it can handle a voltage supply of two hundred thirty to four hundred sixty volts.

• Motor Type: General Purpose
• Power: 5 hp
• Phase: 3 Ph

Product Highlights

This motor is suitable for various industrial applications due to its robust design and continuous duty capability.

Product Information

Standard Information

• Manufacturer: Toshiba
• Part Number: 0054SDSR41A-P

Technical Specifications

• Motor Horsepower: 5 hp
• Base RPM: 1725 rpm
• Voltage Rating: 230/460 V
• Frame Size: 184T
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Full Load Amps: 6.4 amp
• Service Factor: 1.15
• Torque: 15 lb-ft
• Mounting Type: Foot
• Synchronous RPM: 1800 rpm
• Frequency Rating: 60 Hz
• Insulation Class: F
• Weight: 110 lbs
• Shaft Diameter: 1.1250 in
• Shaft Length: 2-1/2 in
• Type of Bearing: Ball
