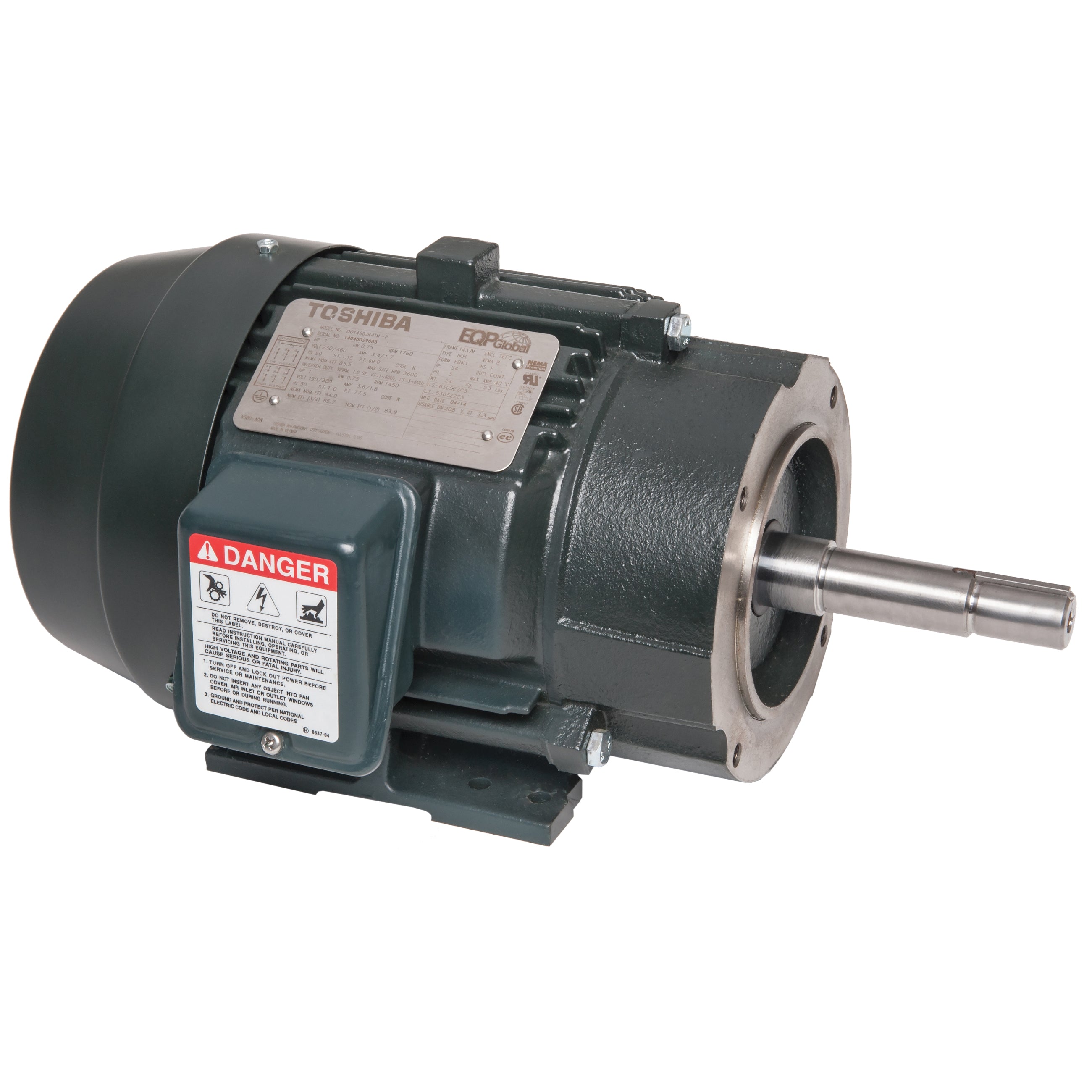

TOSHIBA 0054SDJR41M-P Electric Motor 5 HP 230/460 VAC 60 Hz

Product Description

The TOSHIBA 0054SDJR41M-P is a three-phase electric motor suitable for pumping applications. It operates efficiently at 230/460 VAC and at a frequency of 60 Hz. The motor has a totally enclosed fan cooled (TEFC) design and comes with a 184JM frame.

• Continuous Duty Rated
• Mountable in Horizontal or Vertical Position
• C-Face Footed Mounting Type

Product Highlights

This electric motor is built for durability and performance, featuring a cast iron frame that provides longevity in demanding applications. It is designed for both horizontal and vertical mounting, making it versatile for various setups.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0054SDJR41M-P

Technical Specifications

• Application Type: Oil Well Pumping Motors
• Frame Size: 184JM
• Horsepower: 5 hp
• Voltage Rating: 230/460 VAC
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Speed: 1800 rpm
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Service Factor: 1.15
• Insulation Class: Class F
• Temperature Rating: 40 deg C
• Rotation: CW/CCW
• Material: Cast Iron
• Current Rating: 13.8/6.9 A
• Weight: 114 lbs
• Efficiency: 89.5%
• Power Rating: 3.7 kW
• NEMA Design: B
• Duty Type: CONT
• Full Load Speed: 1755
• Full Load Efficiency: 89.9
• Shaft Size: 1.250 in Dia x 4.281 in L
• Dimensions: 17.7 in L x 9.5 in H
• Bearing Type: 6306ZZC3
