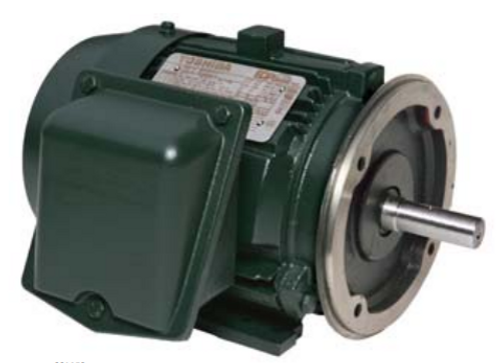

TOSHIBA 0052SDSR42A-P Electric Motor 5 hp TEFC C-Face Footed

Product Description

The TOSHIBA 0052SDSR42A-P is a reliable three-phase electric motor suitable for general-purpose applications such as compressors, fans, and blowers. Operating at 230/460 VAC and 60 Hz, this motor ensures dependable performance.

• Horsepower: 5 hp
• Speed: 3600 rpm
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)

Product Highlights

This electric motor is designed to handle various tasks in industrial settings, providing effective operation in demanding environments.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0052SDSR42A-P

Technical Specifications

• Series: SD Series
• Type: Continuous-Duty Type IKH
• Application Type: General Purpose AC Motors, Compressor Motors, Fan & Blower Motors
• Voltage Rating: 230/460 VAC
• Current Rating: 11.6/5.8 A
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Speed: 3600 rpm
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Frame Size: 184TC
• Shaft Size: 1-1/8 in
• Rotation: CW/CCW
• Service Factor: 1.15
• Bearing Type: Ball
• Torque Rating: 7.5 ft-lb
• Mounting Type: C-Face Footed
• Operating Temperature: 40 deg C
• Insulation Class: Class F
• Material: Cast Iron
• Dimensions: 15.5 in L x 11.2 in H
• Efficiency: 88.5
• NEMA Standards: Premium Efficiency
• Locked Rotor Code: J
