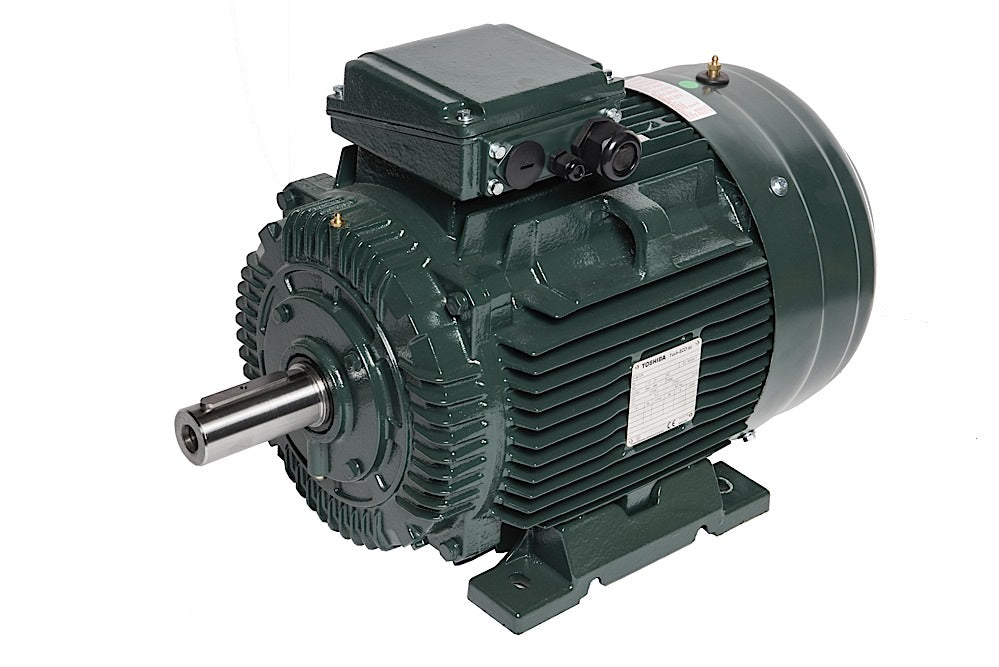

TOSHIBA 0044SDMV7GS-PL Electric Motor 4 HP

Product Description

The TOSHIBA 0044SDMV7GS-PL is a three-phase AC electric motor suitable for various general-purpose applications. It is built with a Totally Enclosed Fan Cooled (TEFC) enclosure and operates at 230/400 Volts, meeting IEC standards for quality and reliability.

• IEC compliant with dual-frequency operation at 50/60 Hz
• High IP55 rating for protection against dust and water
• 112M frame size ensures compatibility with standard mounting options

Product Highlights

This motor is designed for efficiency and durability while providing options for space heaters as needed.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0044SDMV7GS-PL

Technical Specifications

• Motor Type: AC Motor
• Rated Power: 4 HP
• Input Voltage: 230/400 Volt
• Input Frequency: 50/60 Hz
• Number of Poles: 4
• Full Load Amps: 14.9/8.6 Amp
• Speed: 1800 RPM
• Phase: 3 Phase
• Enclosure: TEFC
• Frame Material: Aluminum
• Mounting Type: Flange B5
• Ingress Protection: IP55
• Duty Cycle: S1
• Service Factor: 1.1
• Operating Temperature: 40C
• Efficiency: IE3
• Motor Standards: IEC
